AD7416AR

10-Bit, Digital Temperature Sensor, Single/Four-Channel ADC, SOP8, On-Chip Track-and-Hold, 2.7 V to 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: AD7416AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-20

From Other Seller

Part Number:AD7416AR
US $1.00 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

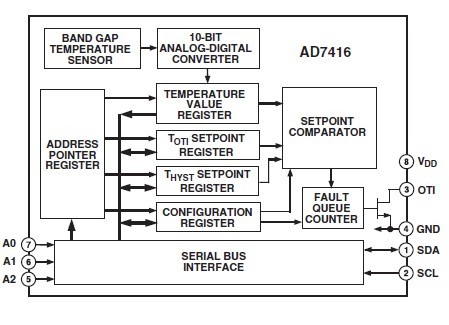

The AD7416AR is a 10-bit, 4-channel and singlechannel ADC with an on-chip temperature sensor that can operate from a single 2.7 V to 5.5 V power supply. The AD7416AR contains a 15 μs successive approximation converter, a 5-channel multiplexer, a temperature sensor, a clock oscillator, a track-and-hold, and a reference (2.5 V). The AD7416AR is a temperature-monitoring only device in an 8-lead package. The AD7416AR sensor on the parts can be accessed via multiplexer Channel 0. When Channel 0 is selected and a conversion is initiated, the resulting ADC code at the end of the conversion gives a measurement of the ambient temperature (±1℃ @ 25℃). On-chip registers can be programmed with high and low temperature limits, and an open-drain overtemperature indicator (OTI) output is provided, which becomes active when a programmed limit is exceeded.

Parametrics

AD7416AR absolute maximum ratings: (1)VDD to AGND: -0.3 V to +7 V; (2)VDD to DGND: -0.3 V to +7 V; (3)Analog Input Voltage to AGND; (4)AIN1 to AIN4: -0.3 V to VDD + 0.3 V; (5)Reference Input Voltage to AGND2: -0.3 V to VDD + 0.3 V; (6)Digital Input Voltage to DGND: -0.3 V to VDD + 0.3 V; (7)Digital Output Voltage to DGND : -0.3 V to VDD + 0.3 V; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature : 150℃; (10)TSSOP, Power Dissipation: 450 mW; (11)16-Lead SOIC Package, Power Dissipation: 450 mW; (12)θJA Thermal Impedance: 100℃/W.

Features

AD7416AR features: (1)10-Bit ADC with 15 μs and 30 μs Conversion Times; (2)Single and Four Single-Ended Analog Input Channels; (3)On-Chip Temperature Sensor: -40℃ to +125℃; (4)On-Chip Track-and-Hold; (5)Overtemperature Indicator; (6)Automatic Power-Down at the End of a Conversion; (7)Wide Operating Supply Range: 2.7 V to 5.5 V; (8)I2C Compatible Serial Interface; (9)Selectable Serial Bus Address Allows Connection of up to Eight AD7416/AD7417s to a Single Bus; (10)AD7416 Is a Superior Replacement for LM75.
