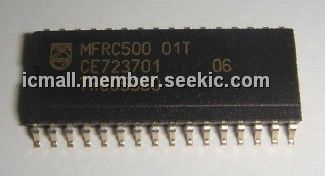

Product Summary
The MFRC500 01T/OFE is member of a new family of highly integrated reader ICs for contactless communication on 13,56MHz. This new reader IC family utilises an outstanding modulation and demodulation concept completely integrated for all major kinds of passive contactless communication methods and protocols on 13,56MHz. The MFRC500 01T/OFE supports all layers of ISO14443A.
Parametrics
DC characteristics: (1)DVDD, Digital Supply Voltage: 4.5 v min, 5.0 v typ, 5.5 V max; (2)AVDD, Analog Supply Voltage: 4.5 v min, 5.0 v typ, 5.5 V max; (3)TVDD, Transmitter Supply Voltage: 3.3v min, 5.0 v typ, 5.5 V max; (4)IDVDD, Operating Digital Supply Current: 6 mA typ; (5)IAVDD, Operating Analog Supply Current: 25 mA typ; (6)ITVDD, Operating Buffered Antenna Driver Supply Current: 150 mA max at continuous wave.
Features
Features: (1)Highly integrated analog circuitry to decode card response; (2)Buffered output drivers to connect an antenna with minimum number of external components; (3)Proximity operating distance (up to 100 mm); (4)Fast internal oscillator buffer to connect 13.56 MHz quartz; (5)Clock frequency monitoring; (6)Hard reset with low power functions; (7)Power down mode per software; (8)Parallel μController interface with internal address latch and IRQ line; (9)Automatic detection of parallel μC interface type; (10)Comfortable send and receive FIFO buffer; (11)Anti-collision procedure support; (12)Bit- and byte-oriented framing; (13)Unique serial number; (14)Onboard timer circuit; (15)Supports MIFARE PRO and ISO 14443A(transparent mode and T="CL" ); (16)Supports MIFARE Classic; (17)Crypto1 and secure non-volatile internal key memory; (18)Supports MIFAREò active antenna concept.; (19)Suitable for high security terminals with SAMs based on e.g. triple DES, RSA, elliptic curves.

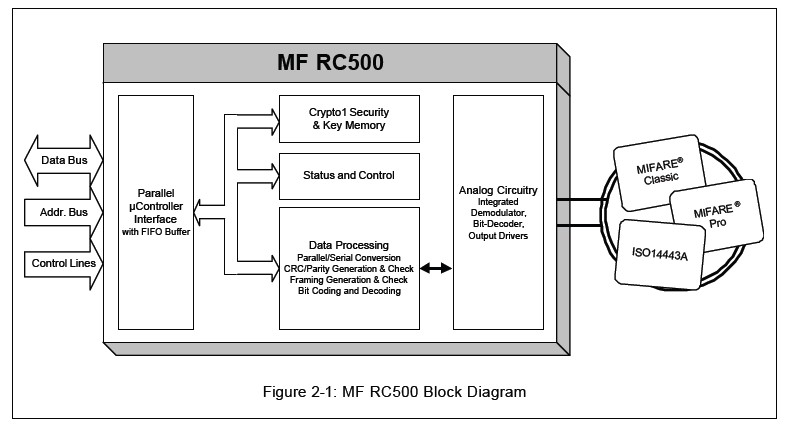

Diagrams
