Product Summary

The AD7888AR is a high speed, low power, 12-bit ADC that operates from a single 2.7 V to 5.25 V power supply. The AD7888AR is capable of a 125 kSPS throughput rate. The input track-and-hold acquires a signal in 500 ns and features a single-ended sampling scheme. The AD7888AR contains eight single-ended analog inputs, AIN1 through AIN8. The analog input on each of these channels is from 0 to VREF. The part is capable of converting full power signals up to 2.5 MHz. The applications of the AD7888AR include Battery-Powered Systems (Personal Digital Assistants, Medical Instruments, Mobile Communications), Instrumentation and Control Systems and High-Speed Modems.

Parametrics

AD7888AR absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)Analog Input Voltage to AGND: –0.3 V to VDD + 0.3 V; (3)Digital Input Voltage to AGND: –0.3 V to VDD + 0.3 V; (4)Digital Output Voltage to AGND: –0.3 V to VDD + 0.3 V; (5)REFIN/REFOUT to AGND: –0.3 V to VDD + 0.3 V; (6)Input Current to Any Pin Except Supplies: ±10 mA; (7)Operating Temperature Range, Commercial: –40℃ to +105℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Junction Temperature: 150℃; (10)SOIC, TSSOP Package, Power Dissipation: 450 mW; (11)θJA Thermal Impedance: 124.9℃/W; (12)θJC Thermal Impedance: 42.9℃/W; (13)ESD: 1KV.

Features

AD7888AR features: (1)Specified for VDD of 2.7 V to 5.25 V; (2)Flexible Power/Throughput Rate Management; (3)Shutdown Mode: 1 μA Max; (4)Eight Single-Ended Inputs; (5)Serial Interface: SPI/QSPI/MICROWIRE/DSP Compatible; (6)16-Lead Narrow SOIC and TSSOP Packages.

Diagrams

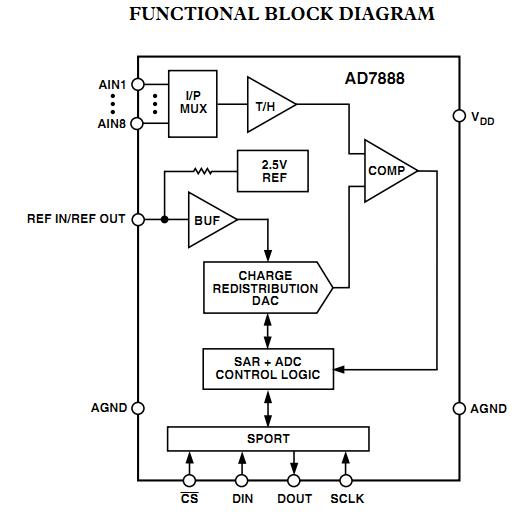

AD7888AR functional block diagram
