Product Summary

The MC3363DW is a single chip narrowband VHF FM radio receiver. It is a dual conversion receiver with RF amplifier transistor, oscillators, mixers, quadrature detector, meter drive/carrier detect and mute circuitry. The MC3363DW also has a buffered first local oscillator output for use with frequency synthesizers, and a data slicing comparator for FSK detection.

Parametrics

MC3363DW absolute maximum ratings: (1)Power Supply Voltage, VCC(max): 7.0 Vdc; (2)Operating Supply Voltage Range (Recommended), VCC: 2.0 to 6.0Vdc; (3)Input Voltage (VCC = 5.0 Vdc), V1:–28 to 1.0 Vrms; (4)Mute Output Voltage, V19: – 0.7 to 8.0 Vpk; (5)Junction Temperature, TJ: 150℃; (6)Operating Ambient Temperature Range, TA: –40 to +85℃; (7)Storage Temperature Range, Tstg: –65 to +150℃.

Features

MC3363DW fetures: (1)Wide Input Bandwidth: 200 MHz Using Internal Local Oscillator; 450 MHz Using External Local Oscillator; (2)RF Amplifier Transistor; (3)Muting Operational Amplifier; (4)Complete Dual Conversion; (5)Low Voltage: VCC = 2.0 V to 6.0 Vdc; (6)Low Drain Current: ICC = 3.6 mA (Typical) at VCC =3.0V, Excluding RF Amplifier Transistor; (7)Excellent Sensitivity: Input 0.3 μV (Typical) for 12 dB SINAD Using Internal RF Amplifier Transistor Data Shaping Comparator; (8)Received Signal Strength Indicator (RSSI) with 60 dB Dynamic Range; (9)Low Number of External Parts Required.

Diagrams

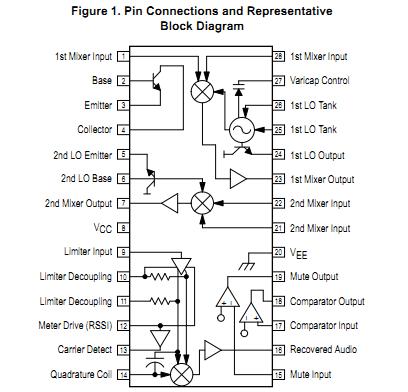

MC3363DW Pin Connections and Representative Block Diagram
