Product Summary

The MAX1700EEE is a high-efficiency, low-noise, step-up DC-DC converter intended for use in battery-powered wireless applications. The MAX1700EEE uses a synchronous-rectified pulse-width-modulation (PWM) boost topology to generate 2.5V to 5.5V outputs from battery inputs such as one to three NiCd/NiMH cells or one LiIon cell. The MAX1700EEE has an internal 1A, 130mΩ N-channel MOSFET switch and a 250mΩ P-channel. The applications of the MAX1700EEE include Digital Cordless Phones, Personal Communicators, PCS Phones Palmtop Computers, Wireless Handsets, Hand-Held Instruments and Two-Way Pagers.

Parametrics

MAX1700EEE absolute maximum ratings: (1)ONA, ONB, OUT, AO, POK, LBO to GND: -0.3V, +6V; (2)PGND to GND: ±0.3V; (3)LX to PGND: -0.3V,VPOUT+0.3V; (4)CLK/SEL, AIN, REF, FB, LBP, LBN, POUT to GND: -0.3V, VOUT+0.3V; (5)Continuous Power Dissipation: 667mW; (6)Operating Temperature Ranges: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX1700EEE features: (1)Up to 96% Efficiency; (2)1.1 VIN Guaranteed Start-Up; (3)0.7V to 5.5V Input Range; (4)Up to 800mA Output; (5)Step-Up Output (adjustable from 2.5V to 5.5V); (6)PWM/PFM Synchronous-Rectified Topology; (7)External Clock or Internal 300kHz Oscillator; (8)3μA Logic-Controlled Shutdown; (9)Power-Good Output; (10)Low-Battery Comparator; (11)Uncommitted Gain Block.

Diagrams

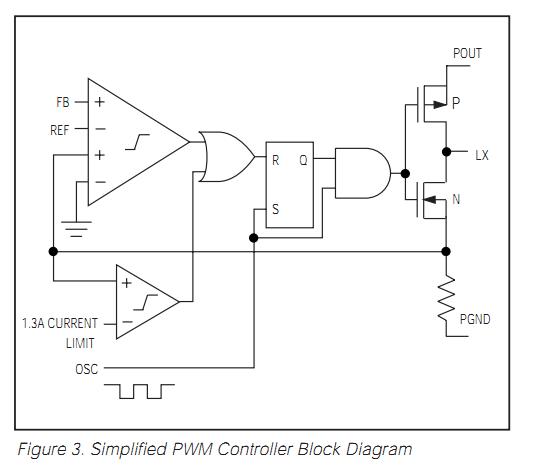

MAX1700EEE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX1700EEE+T
MAX1700EEE+T

Maxim Integrated Products

DC/DC Switching Converters 1-3 Cell 1A Step-Up DC/DC Converters

Data Sheet

Negotiable
MAX1700EEE-T
MAX1700EEE-T

Maxim Integrated Products

DC/DC Switching Converters 1-3 Cell 1A Step-Up DC/DC Converters

Data Sheet

Negotiable
MAX1700EEE+
MAX1700EEE+

Maxim Integrated Products

DC/DC Switching Converters 1-3 Cell 1A Step-Up DC/DC Converters

Data Sheet

Negotiable
MAX1700EEE
MAX1700EEE

Maxim Integrated Products

DC/DC Switching Converters 1-3 Cell 1A Step-Up DC/DC Converters

Data Sheet

Negotiable
