Product Summary

The OP496GS is a CBCMOS operational amplifier. It features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from 3 V to 12 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. The dynamic performance of the OP496GS, including 26 nV/Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation. The applications of the OP496GS include Battery Monitoring, Sensor Conditioners, Portable Power Supply Control and Portable instrumentation.

Parametrics

OP496GS absolute maximum ratings: (1)Supply Voltage: 15 V; (2)Input Voltage: 15 V; (3)Differential Input Voltage: 15 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range: –65 to +150℃; (6)Operating Temperature Range: –40 to +125℃; (7)Junction Temperature Range: –65 to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

OP496GS features: (1)Rail-to-Rail Input and Output Swing; (2)Low Power: 60μA/Amplifier; (3)Gain Bandwidth Product: 450 kHz; (4)Single-Supply Operation: 3 V to 12 V; (5)Low Offset Voltage: 300μV max; (6)High Open-Loop Gain: 500 V/mV; (7)Unity-Gain Stable; (8)No Phase Reversal.

Diagrams

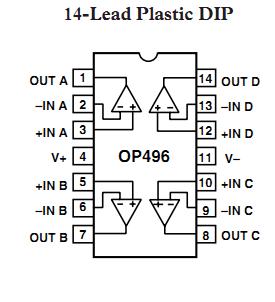

OP496GS block diagram
