Product Summary
The CS8900A-CQ3Z is a low-cost Ethernet LAN Controller optimized for the Industry Standard Architecture (ISA) bus and general purpose microcontroller busses. Its highlyintegrated design eliminates the need for costly external components required by other Ethernet controllers.
Parametrics
Absolute maximum ratings: (1)power supply digital:-0.3 to 6.0 V; (2)power supply analog:-0.3 to 6.0 V;(3)input current:±10.0 mA; (4)analog input voltage:-0.3 to (AVDD+)+0.3 V; (5)digital input voltage:-0.3 (DVDD)+0.3 V;(6)ambient temperature:-55 to +125 ℃; (7)storage temperature:-65 to +150 ℃.
Features
Features: (1)Single-Chip IEEE 802.3 Ethernet Controller with Direct ISA-Bus Interface; (2)Maximum Current Consumption = 55 mA (5V Supply); (3)3 V or 5 V Operation; (4)Industrial Temperature Range; (5)Comprehensive Suite of Software Drivers Available.

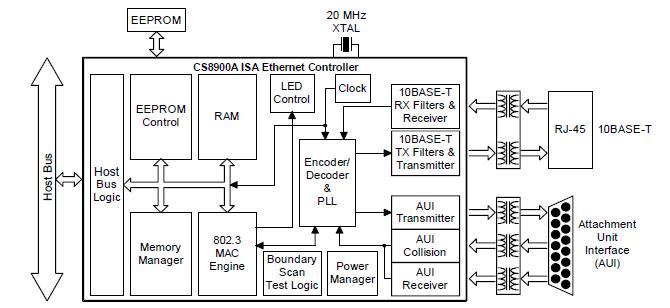

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS8900A-CQ3Z |
Cirrus Logic |
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V |
Data Sheet |
|
|
||||||||||||
 |
CS8900A-CQ3ZR |
Cirrus Logic |
Ethernet ICs IC 10Mbps Ethernet Controller 3.3V |
Data Sheet |
|
|
||||||||||||
