Product Summary
The ADS7846E is a next-generation version to the industry standard ADS7843 4-wire touch screen controller. The ADS7846E is 100% pin-compatible with the existing ADS7843, and drops into the same socket. This allows for easy upgrade of current applications to the new version. The ADS7846E also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The applications of the ADS7846E include personal digital assistants, portable instruments, point-of-sale terminals, pagers, touch screen monitors and cellular phones.
Parametrics
ADS7846E absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND: –0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +VCC + 0.3V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40 to +85℃; (7)Storage Temperature Range:–65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
ADS7846E features: (1)same pinout as ADS7843; (2)2.2V to 5.25V operation; (3)internal 2.5V reference; (4)direct battery measurement (0V to 6V); (5)on-chip temperature measurement; (6)touch-pressure measurement; (7)QSPI/SPI 3-wire interface; (8)auto power-down; (9)TSSOP-16, SSOP-16, QFN-16, and VFBGA-48 packages.

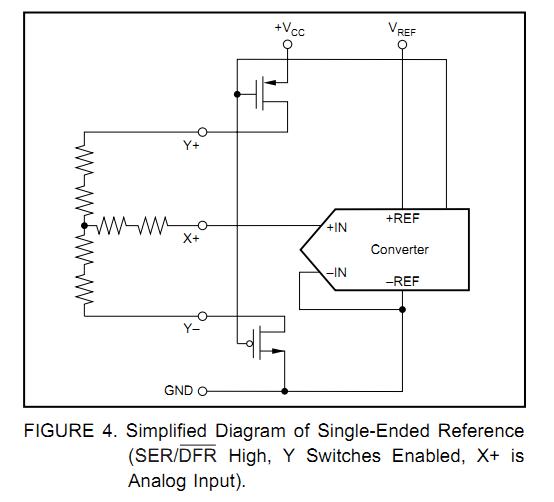

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7846E |
Texas Instruments |
Touch Screen Converters & Controllers 4-wire Touch Screen Controller |
Data Sheet |
|
|
||||||||||||
|
ADS7846E/2K5 |
Texas Instruments |
Touch Screen Converters & Controllers 4-wire Touch Screen Controller |
Data Sheet |
|
|
||||||||||||
|
ADS7846EG4 |
Texas Instruments |
Touch Screen Converters & Controllers 4-wire Touch Screen Controller |
Data Sheet |
|
|
||||||||||||
|
ADS7846E/2K5G4 |
Texas Instruments |
Touch Screen Converters & Controllers 4-wire Touch Screen Controller |
Data Sheet |
|
|
||||||||||||
