Product Summary

The AD825ARZ is a superbly optimized operational amplifier for high speed, low cost, and dc parameters, making it ideally suited for a broad range of signal conditioning and data acquisition applications. The ac performance, gain, bandwidth, slew rate, and drive capability are all very stable over temperature. The AD825 also maintains stable gain under varying load conditions.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage (Common Mode): ±VS; (3)Differential Input Voltage: ±VS; (4)Storage Temperature Range (R, R-16): -65℃ to +125℃; (5)Operating Temperature Range: -40℃ to +85℃; (6)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

Features: (1)High speed; (2)Input bias current of 20 pA and noise current of 10 fA/√Hz; (3)Input voltage noise of 12 nV/√Hz; (4)Fully specified power supplies: ±5 V to ±15 V; (5)Low distortion: .76 dB at 1 MHz; (6)High output drive capability; (7)No phase reversal when input is at rail; (8)Available in 8-lead SOIC.

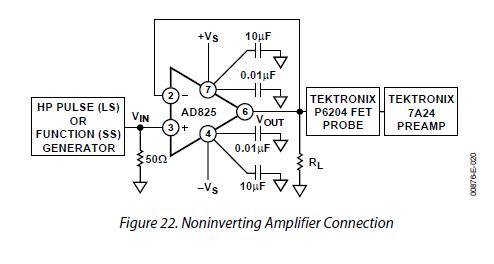

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD825ARZ
AD825ARZ

IC OPAMP JFET GP 26MHZ 8SOIC
Data Sheet
0-1: $2.84
1-10: $2.54
10-100: $2.08
100-250: $1.88
250-500: $1.69
500-1000: $1.42
1000-2500: $1.35
AD825ARZ-16
AD825ARZ-16

IC OPAMP JFET GP 26MHZ 16SOIC
Data Sheet
0-47: $3.12
AD825ARZ-REEL7
AD825ARZ-REEL7

IC OPAMP JFET GP 26MHZ 8SOIC
Data Sheet
0-1000: $1.42
AD825ARZ-16-REEL
AD825ARZ-16-REEL

IC OPAMP JFET GP 26MHZ 16SOIC
Data Sheet
0-1000: $2.06
AD825ARZ-16-REEL7
AD825ARZ-16-REEL7

IC OPAMP JFET GP 26MHZ 16SOIC
Data Sheet
0-400: $2.59
AD825ARZ-REEL
AD825ARZ-REEL

IC OPAMP JFET GP 26MHZ 8SOIC
Data Sheet
0-2500: $1.35
