Product Summary
The AD623ARZ is an integrated single-supply instrumentation amplifier that delivers rail-to-rail output swing on a 3 V to 12 V supply. The AD623ARZ offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623ARZ is configured for unity gain (G = 1), and with an external resistor. The AD623ARZ can be programmed for gains up to 1000. The applications of the AD623ARZ include Low power medical instrumentation, Transducer interfaces, Thermocouple amplifiers, Industrial process controls, Difference amplifiers and Low power data acquisition.
Parametrics
AD623ARZ absolute maximum rtings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation1: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65 to +125℃; (6)Operating Temperature Range: -40 to +85℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
AD623ARZ features: (1)Easy to use; (2)Higher performance than discrete design; (3)Single-supply and dual-supply operation; (4)Rail-to-rail output swing; (5)Input voltage range extends 150 mV below ground (single supply); (6)Low power, 550 μA maximum supply current; (7)Gain set with one external resistor, Gain range: 1 (no resistor) to 1000 ; (8)High accuracy dc performance; (9)Noise: 35 nV/Hz RTI noise @ 1 kHz (G = 1); (10)Excellent ac specifications: 90 dB minimum CMRR (G = 10); 70 dB minimum CMRR (G = 1) at 60 Hz, 1 kΩ source imbalance; 800 kHz bandwidth (G = 1); 20 μs settling time to 0.01% (G = 10).

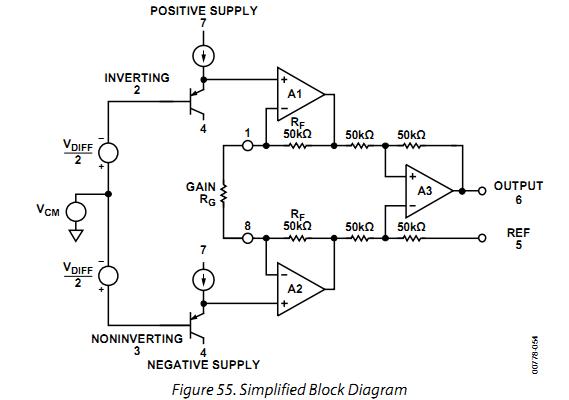

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD623ARZ |
|
IC AMP INST R-R LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD623ARZ-R7 |
|
IC AMP INST R-R LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD623ARZ-RL |
|
IC AMP INST R-R LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
