Product Summary

The DCR010505U family is a series of high-efficiency, inputisolated, output-regulated DC/DC converters. In addition to 1W nominal, galvanically-isolated output power capability, this range of DC/DCs offer very low output noise, thermal protection and high accuracy.

Parametrics

Absolute maximum ratings: (1)Input Voltage: 7V; (2)Storage Temperature: –60°C to +125℃; (3)Lead Temperature (soldering, 10s): 270℃.

Features

Features: (1)UL1950 recognized; (2)PDIP-18, SO-28(1); (3)53W/in3 (3.3W/cm3) power density; (4)device-to-device synchronization; (5)thermal protection; (6)1000Vrms isolation; (7)400kHz switching; (8)125 fits at 55°C; (9)±10% input range; (10)short-circuit protected; (11)5V, 12V, 24V inputs; (12)3.3V, 5V outputs; (13)high efficiency.

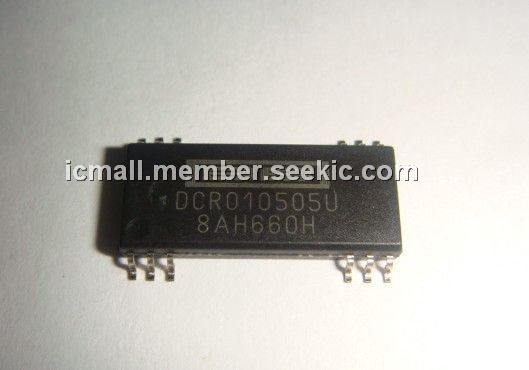

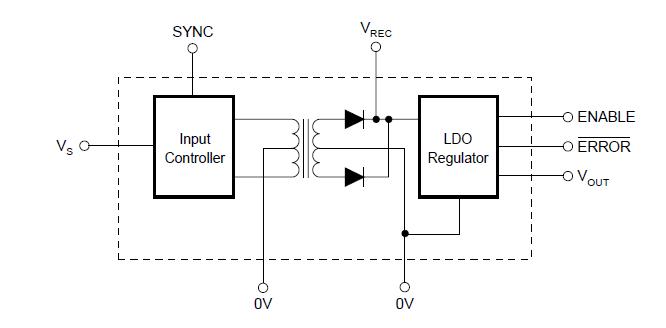

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DCR010505U
DCR010505U

Texas Instruments

DC/DC Converters Mini 1W Iso Regs DC/DC Converter
