Product Summary
The MAX238CWG is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX238CWG is especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The applications of the MAX238CWG include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems and Multidrop RS-232 Networks.
Parametrics
MAX238CWG absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages: TIN: -0.3V to (VCC - 0.3V); RIN: ±30V; (5)TOUT: ±15V; (6)Output Voltages, TOUT: ±15V; ROUT: -0.3V to (VCC + 0.3V); (7)Driver/Receiver Output Short Circuited to GND: Continuous; (8)Continuous Power Dissipation: 842mW; (9)Operating Temperature Ranges: 0 to +70℃; (10)Storage Temperature Range: -65 to +160℃; (11)Lead Temperature (soldering, 10s): +300℃.
Features
MAX238CWG features: (1)For Low-Voltage, Integrated ESD Applications; (2)+3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors; (3)For Low-Cost Applications; (4)±15kV ESD-Protected, +5V, 1μA; (5)Single RS-232 Transceiver with AutoShutdown.

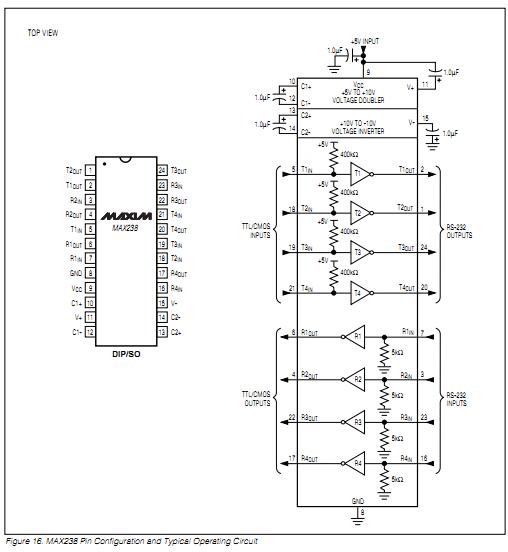

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX238CWG |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX238CWG+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX238CWG+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX238CWG-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
