Product Summary
The MAX3243CAI is a 1μA Supply-Current, True +3V to +5.5V RS-232 Transceiver with AutoShutdown. The MAX3243CAI achieves 1μA supply current with Maxim revolutionary AutoShutdown feature. When the MAX3243CAI does not sense a valid signal level on its receiver inputs, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The applications of the MAX3243CAI include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand-Held Equipment, Peripherals and Printers.
Parametrics
MAX3243CAI absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages, R_IN: ±25V; (6)Output Voltages, T_OUT: ±13.2V; (7)R_OUT, INVALID: .-0.3V to (VCC + 0.3V); (8)Short-Circuit Duration, T_OUT: Continuous; (9)Continuous Power Dissipation: 571mW; (10)Operating Temperature Ranges: 0 to +70℃; (11)Storage Temperature Range: -65 to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.
Features
MAX3243CAI features: (1)For Space-Constrained Applications: +2.5V to +5.5V RS-232 Transceivers in UCSP; (2)For Integrated ESD Protection: ±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232; (3)Transceivers; (4)For Low-Voltage or Data Cable Applications: +2.5V to +5.5V, 1μA, 2 Tx/2 Rx RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pi.

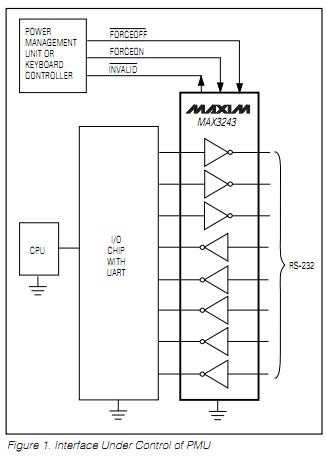

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX3243CAI |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX3243CAI+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 250kbps Transceiver |
Data Sheet |
|
|
|||||||||||||
MAX3243CAI+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 250kbps Transceiver |
Data Sheet |
|
|
|||||||||||||
MAX3243CAI-C78088 |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX3243CAI-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
