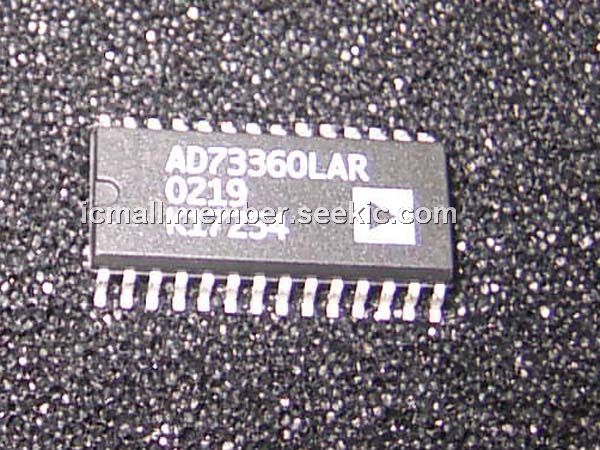

Product Summary
The AD73360LARZ is a six-input channel analog front-end processor for general-purpose applications, including industrial power metering or multichannel analog inputs. It features six 16-bit A/D conversion channels, each of which provides 76 dB signalto-noise ratio over a dc-to-4 kHz signal bandwidth. Each channel also features a programmable input gain amplifier (PGA) with gain settings in eight stages from 0 dB to 38 dB. The AD73360LARZ is particularly suitable for industrial power metering as each channel samples synchronously, ensuring that there is no (phase) delay between the conversions.
Parametrics
Absolute maximum ratings: (1)AVDD, DVDD to GND: –0.3 V to +4.6 V; (2)AGND to DGND: –0.3 V to +0.3 V; (3)Digital I/O Voltage to DGND: –0.3 V to DVDD + 0.3 V; (4)Analog I/O Voltage to AGND: –0.3 V to AVDD; (5)Operating Temperature Range Industrial (A Version): –40℃ to +85℃ ; (6)Storage Temperature Range: –65℃ to +150℃ ; (7)Maximum Junction Temperature: 150℃ ; (8)SOIC, θJA Thermal Impedance: 75℃ /W; (9)Lead Temperature, Soldering: Vapor Phase (60 sec): 215℃; Infrared (15 sec) : 220℃.
Features
Features: (1)Six 16-Bit A/D Converters; (2)Programmable Input Sample Rate; (3)Simultaneous Sampling; (4)76 dB SNR; (5)64 kS/s Maximum Sample Rate; (6)–95 dB Crosstalk; (7)Low Group Delay (25 μs Typ per ADC Channel); (8)Programmable Input Gain; (9)Flexible Serial Port Which Allows Multiple Devices to Be Connected in Cascade; (10)Single (2.7 V to 3.6 V) Supply Operation; (11)80 mW Max Power Consumption at 2.7 V; (12)On-Chip Reference; (13)28-Lead SOIC Package.

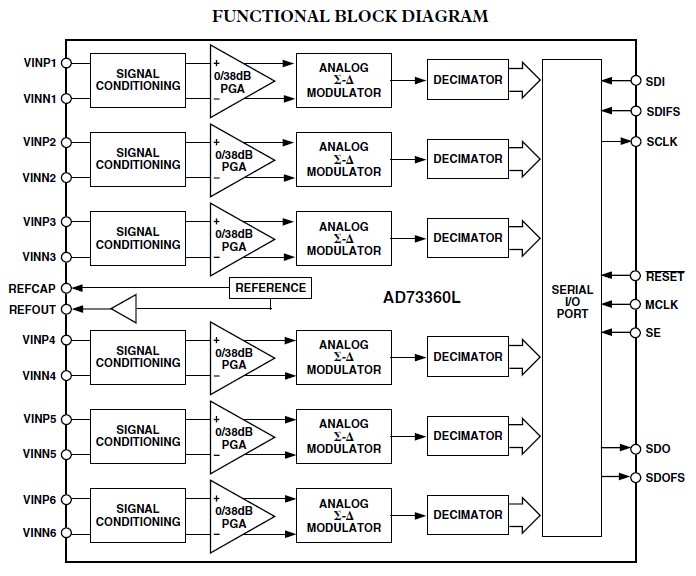

Diagrams
