Product Summary

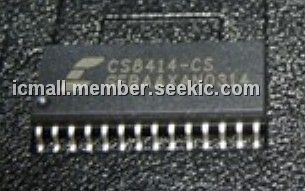

The CS8414-CS is a monolithic CMOS device which receive and decode audio data up to 96kHz according to the AES/EBU, IEC958, S/PDIF, and EIAJ CP340/1201 interface standards. It receives data from a transmission line, recover the clock and synchronization signals, and de-multiplex the audio and digital data. Differential or single ended inputs can be decoded. The CS8414-CS de-multiplexes the channel, user, and validity data directly to serial output pins with dedicated output pins for the most important channel status bits.
Parametrics
Absolute maximum ratings: (1)Power Supply Voltage, VD+, VA+: 6.0 V max; (2)Input Current, Any Pin Except Supply, Iin: ±10 mA max; (3)Input Voltage, Any Pin Except RXP, RXN, VIN: -0.3 to (VD+) + 0.3 V; (4)Input Voltage, RXP and RXN, VIN: -12 to 12 V; (5)Ambient Operating Temperature (power applied), TA: -55 to 125 ℃; (6)Storage Temperature, Tstg: -65 to 150 ℃.
Features
Features: (1)Sample Rates to >100 kHz; (2)Low-Jitter, On-Chip Clock Recovery 256xFs Output clock Provided; (3)Supports: AES/EBU, IEC 958, S/PDIF, &EIAJ CP340/1201 Professional and Consumer Formats; (4)Extensive Error Reporting Repeat Last Sample on Error Option; (5)On-Chip RS422 Line Receiver; (6)Pin Compatible with CS8411 and CS8412.

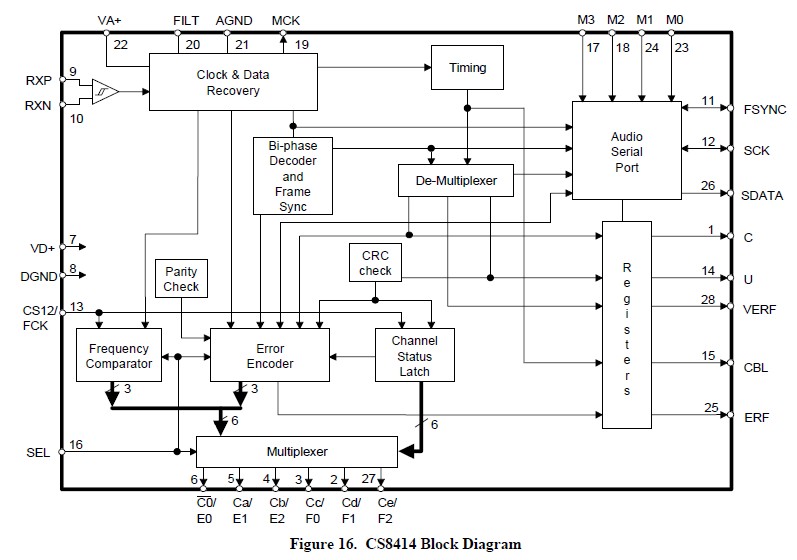

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS8414-CSZ |
Cirrus Logic |
Audio DSPs IC 96 kHz Digital Audio Receivers |
Data Sheet |
Negotiable |
|
||||
|
CS8414-CSZR |
Cirrus Logic |
Audio DSPs IC 96 kHz Digital Audio Receivers |
Data Sheet |
Negotiable |
|
||||
