Product Summary

The ADG333ABRZ is a monolithic CMOS device comprising four independently selectable SPDT switches. It is designed on an LC2MOS process which provides low power dissipation yet achieves a high switching speed and a low on resistance. The on resistance profile is very flat over the full analog input range ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the part suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the part ideally suited for portable, battery powered instruments.

Parametrics

Absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: –0.3 V to +30 V; (3)VSS to GND: +0.3 V to –30 V; (4)Analog, Digital Inputs2: VSS – 2 V to VDD + 2 V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Peak Current, S or D: 40 mA; (7)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (8)Storage Temperature Range: –65℃ to +125℃; (9)Junction Temperature: +150℃.

Features

Features: (1)44 V Supply Maximum Ratings; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (45 Ω max); (4)Low △RON (5 Ω max); (5)Low RON Match (4 Ω max); (6)Low Power Dissipation; (7)Fast Switching Times: tON < 175 ns, tOFF < 145 ns; (8)Low Leakage Currents (5 nA max); (9)Low Charge Injection (10 pC max); (10)Break-Before-Make Switching Action.

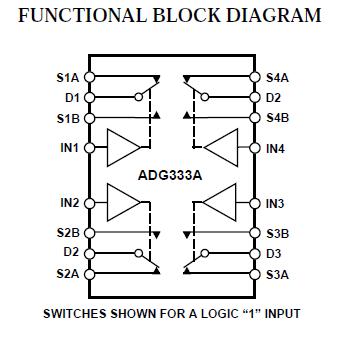

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADG333ABRZ
ADG333ABRZ


IC SWITCH QUAD SPDT 20SOIC

Data Sheet

0-1: $3.82
1-10: $3.44
10-100: $2.83
100-250: $2.60
250-500: $2.37
500-1000: $2.06
1000-2500: $2.04
ADG333ABRZ-REEL
ADG333ABRZ-REEL


IC SWITCH QUAD SPDT 20SOIC

Data Sheet

0-1000: $2.06
