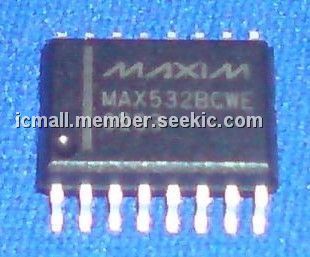

MAX532BCWE

complete, dual, serial-input, 12-bit multiplying digital-to-analog converter, SOP16, -0.3V to +17V, 842mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~8.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~8.50

PartNumber:: MAX532BCWE

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:MAX532BCWE
US $8.00 - 8.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX532BCWE is a complete, dual, serial-input, 12-bit multiplying digital-to-analog converter (MDAC) with out-put amplifiers. No external user trims are required to achieve full specified performance. The MAX532BCWE 3-wire serial interface minimizes the number of package pins, so it uses less board space than parallel-interface parts. The interface is SPI, QSPI and Microwire compatible. The applications of the MAX532BCWE include Automatic Test Equipment, Arbitrary Waveform Generators, Programmable-Gain Amplifiers, Motion Control Systems and Servo Controls.

Parametrics

MAX532BCWE absolute maximum ratings: (1)pin Voltages, VDD to DGND, AGNDA, AGNDB: -0.3V to +17V; VSS to DGND, AGNDA, AGNDB: +0.3V to -17V; VREFA, VREFB: (VSS - 0.3V) to (VDD + 0.3V); AGNDA, AGNDB: (DGND - 0.3V) to (VDD + 0.3V); VOUTA, VOUTB: (VSS - 0.3V) to (VDD + 0.3V); RFBA, RFBB: (VSS - 0.3V) to (VDD + 0.3V); SCLK, DIN, DOUT, LDAC, CS: (DGND - 0.3V) to (VDD + 0.3V; (2)DOUT Sink Current: 20mA; (3)Continuous Power Dissipation: 842mW; (4)Operating Temperature Ranges: 0 to +70℃; (5)Junction Temperatures: +150℃; (6)Storage Temperature Range: -65 to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX532BCWE features: (1)Two 12-Bit MDACs with Output Amplifiers; (2)Fast, 6MHz 3-Wire Interface; (3)SPI, QSPI, and Microwire Compatible; (4)±12V Output Swing; (5)±10mA Output Current; (6)2.5μs Settling Time to ±1/2LSB; (7)Guaranteed Monotonic Over Temperature; (8)Low Integral Nonlinearity: ±1/2LSB Max; (9)Low Gain Tempco: 2ppm/℃; (10)Operates from ±12V to ±15V Supplies; (11)Power-On Reset; (12)Available in 16-Pin DIP and Wide SO Packages.
