Product Summary
The CA3306M is a CMOS parallel (FLASH) analog-to-digital converter designed for applications demanding both low power consumption and high speed digitization. Digitizing at 15MHz, for example, requires only about 50mW. The applications of the CA3306M include TV Video Digitizing, Ultrasound Signature Analysis, Transient Signal Analysis, High Energy Physics Research, High Speed Oscilloscope Storage/Display, General Purpose Hybrid ADCs, Optical Character Recognition, Radar Pulse Analysis, Motion Signature Analysis and Robot Vision.
Parametrics
CA3306M absolute maximum ratings: (1)DC Supply Voltage Range, VDD, Voltage Referenced to VSS Terminal: -0.5V to +8.5V; (2)Input Voltage Range, All Inputs Except Zener: -0.5V to VDD + 0.5V; (3)DC Input Current, CLK, PH, CE1, CE2, VIN: ±20mA.
Features
CA3306M features: (1)CMOS Low Power with Video Speed (Typ): 70mW; (2)Parallel Conversion Technique; (3)Signal Power Supply Voltage: 3V to 7.5V; (4)15MHz Sampling Rate with Single 5V Supply; (5)6-Bit Latched Three-State Output with Overflow Bit; (6)Pin-for-Pin Retrofit for the CA3300.

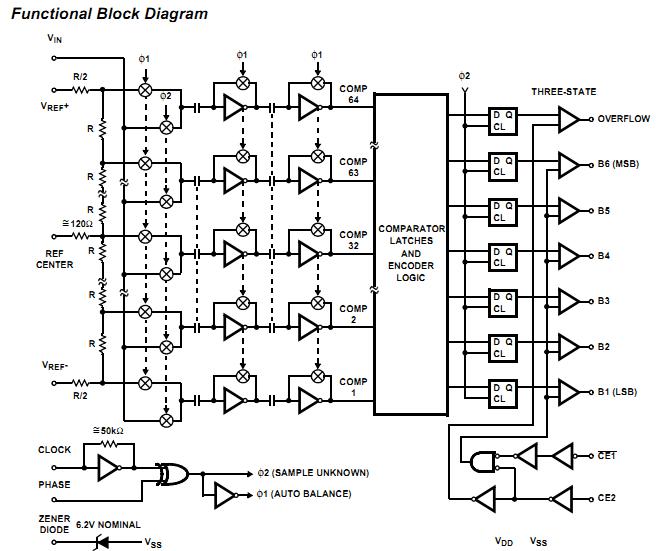

Diagrams
