MAX1706EEE-T

step-up DC-DC converter, PWM, 0.5A switch, QSOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.20

PartNumber:: MAX1706EEE-T

Brand:: Maxim Integrated Products - Maxim | Pack: QSOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-21

From Other Seller

Part Number:MAX1706EEE-T
US $1.00 - 1.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

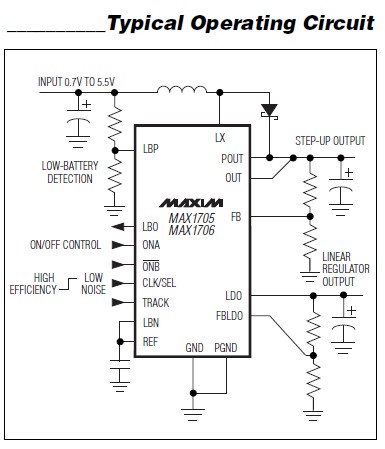

The MAX1706EEE-T is a high-efficiency, low-noise, step-up DC-DC converter with an auxiliary linear regulator output. The device is intended for use in battery-powered wireless applications. It uses a synchronous rectifier pulse-width-modulation (PWM) boost topology to generate 2.5V to 5.5V outputs from battery inputs, such as 1 to 3 NiCd/NiMH cells or 1 Li-Ion cell. The MAX1706EEE-T has a 0.5A switch. It also has a built-in low-dropout linear regulator that delivers up to 200mA.

Parametrics

Absolute maximum ratings: (1)ONA, ONB, FBLDO, OUT, POUT to GND: -0.3V to 6V; (2)PGND to GND: ±0.3V; (3)POUT to OUT: ±0.3V; (4)LX to PGND: -0.3V to (VPOUT + 0.3V); (5)CLK/SEL, REF, FB, TRACK, LDO, LBN, LBP, LBO to GND: -0.3V to (VOUT + 0.3V); (6)LDO Short Circuit: Continuous; (7)Continuous Power Dissipation (TA = +70℃)QSOP (derate 8.70mW/℃ above +70℃): 696mW; (8)Operating Temperature Range: -40℃ to +85℃; (9)Junction Temperature: +150℃; (10)Storage Temperature Range: -65℃ to +160℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

Features: (1)Up to 96% Efficiency; (2)1.1VIN Guaranteed Startup; (3)Up to 850mA Output (MAX1705); (4)Step-Up Output (2.5V to 5.5V Adjustable); (5)Linear Regulator (1.25V to 5.0V Adjustable); (6)PWM/PFM Synchronous-Rectified Topology; (7)300kHz PWM Mode or Synchronizable; (8)1uA Shutdown Mode; (9)Voltage Monitor; (10)Pushbutton On/Off Control.
