Product Summary

The SSM2164S is a Low Cost Quad Voltage Controlled Amplifier. The SSM2164S contains four independent voltage controlled amplifiers (VCAs) in a single package. High performance (100 dB dynamic range, 0.02% THD) is provided at a very low cost-per-VCA, resulting in excellent value for cost sensitive gain control applications. Each VCA SSM2164S offers current input and output for maximum design flexibility, and a ground referenced–33 mV/dB control port. The applications of the SSM2164S include Remote, Automatic, or Computer Volume Controls, Automotive, Volume/ Balance/Faders, Audio Mixers, Compressor/ Limiters/ Compandors, Noise Reduction Systems, Automatic Gain Controls, Voltage Controlled Filters, Spatial Sound Processors and Effects Processors.

Parametrics

SSM2164S absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input, Output, Control Voltages: V– to V+; (3)Output Short Circuit Duration to GND: Indefinite; (4)Storage Temperature Range:–65 to +150℃; (5)Operating Temperature Range: –40 to +85℃; (6)Junction Temperature Range: –65 to +150℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

SSM2164S features: (1)Four High Performance VCAs in a Single Package; (2)0.02% THD; (3)No External Trimming; (4)120 dB Gain Range; (5)0.07 dB Gain Matching (Unity Gain); (6)Class A or AB Operation.

Diagrams

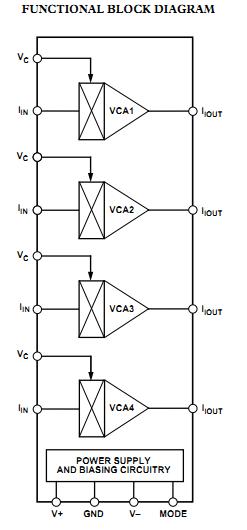

SSM2164S functional block diagram
