Product Summary
The UAA3201T is a fully integrated single-chip receiver, primarily intended for use in VHF and UHF systems employing direct AM Return-to-Zero (RZ) Amplitude Shift Keying (ASK) modulation. The applications of the UAA3201T include: Car alarm systems, Remote control systems, Security systems, Gadgets and toys, Telemetry.
Parametrics
UAA3201T absolute maximum ratings: (1)VCC supply voltage: min=-0.3 V, max=+8.0 V; (2)Tamb ambient temperature: min=-40 ℃, max=+85 ℃; (3)Tstg storage temperature: min=-55 ℃, max=+125 ℃; (4)Ves electrostatic handling voltage pins OSC and OSE: min=-2000 V, max=+1500 V; pins LFB and MIXIN: min=-1500 V, max=+2000 V; all other pins: min=-2000 V, max=+2000 V.
Features
UAA3201T features: (1)Oscillator with external Surface Acoustic Wave Resonator (SAWR); (2)Wide frequency range from 150 to 450 MHz; (3)High sensitivity; (4)Low power consumption; (5)Automotive temperature range; (6)Superheterodyne architecture; (7)Applicable to fulfil FTZ 17 TR 2100 (Germany); (8)High integration level, few external components; (9)Inexpensive external components; (10)IF filter bandwidth determined by application.

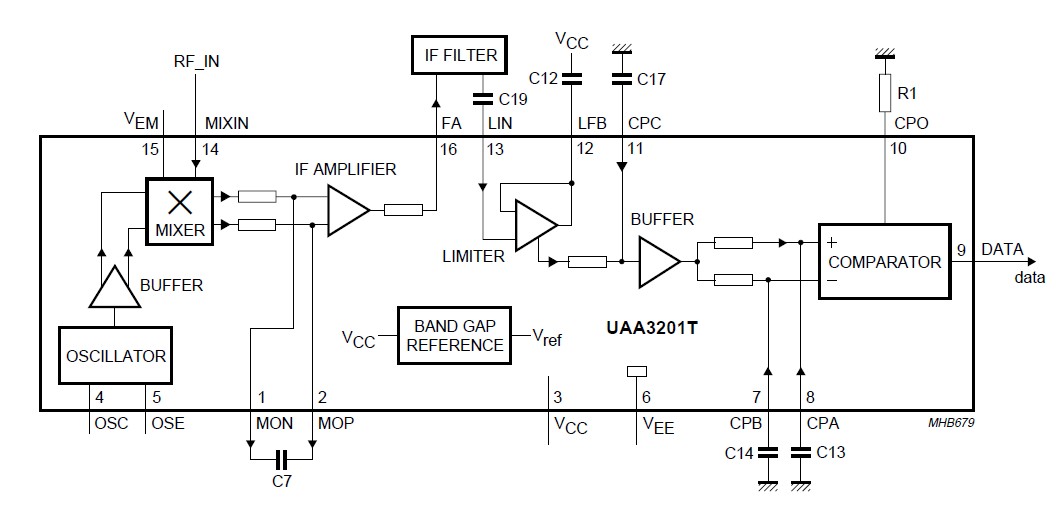

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UAA3201T |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
UAA3201T/V1,112 |
NXP Semiconductors |
RF Transceiver REMOTE CONTROL RECVR |
Data Sheet |
Negotiable |
|
||||
|
UAA3201T/V1,118 |
NXP Semiconductors |
RF Transceiver REMOTE CONTROL RECVR |
Data Sheet |
Negotiable |
|
||||
|
UAA3201TD |
NXP Semiconductors |
RF Transceiver REMOTE CONTROL RECVR |
Data Sheet |
Negotiable |
|
||||
|
UAA3201TD-T |
NXP Semiconductors |
RF Transceiver REMOTE CONTROL RECVR |
Data Sheet |
Negotiable |
|
||||
