AD637JR

high accuracy, monolithic rms-to-dc converter, SOP16, 500 V, 108 mW, Wide Bandwidth, 600 kHz, 2.2mA to 350 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.30

PartNumber:: AD637JR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-19

From Other Seller

Part Number:AD637JR
US $1.80 - 2.30
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

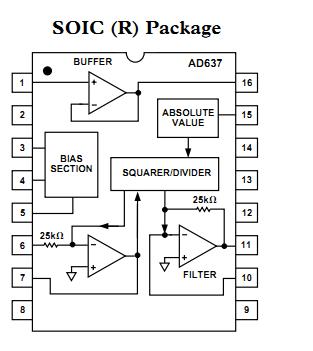

The AD637JR is a complete high accuracy monolithic rms-to-dc converter that computes the true rms value of any complex waveform. The AD637JR offers performance that is unprecedented in inte-grated circuit rms-to-dc converters and comparable to discrete and modular techniques in accuracy, bandwidth and dynamic range. A crest factor compensation scheme in the AD637JR per-mits measurements of signals with crest factors of up to 10 with less than 1% additional error. The circuit wide bandwidth per-mits the measurement of signals up to 600 kHz with inputs of 200 mV rms and up to 8 MHz when the input levels are above 1 V rms.

Parametrics

AD637JR absolute maximum ratings: (1)ESD Rating: 500 V; (2)Supply Voltage: ±18 V dc; (3)Internal Quiescent Power Dissipation: 108 mW; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: –65 to +150℃; (6)Lead Temperature Range (Soldering 10 secs): +300℃; (7)Rated Operating Temperature Range: 0 to +70℃.

Features

AD637JR features: (1)High Accuracy: 0.02% Max Nonlinearity, 0 V to 2 V RMS Input; 0.10% Additional Error to Crest Factor of 3; (2)Wide Bandwidth: 8MHz at 2 V RMS Input; 600 kHz at 100 mV RMS; (3)Computes: True RMS; Square; Mean Square; Absolute Value; (4)dB Output (60 dB Range); (5)Chip Select-Power Down Feature Allows: Analog 3-State Operation; Quiescent Current Reduction from 2.2mA to 350 mA; (6)Side-Brazed DIP, Low Cost Cerdip and SOIC.
