Product Summary
The AD8564AR is a quad 7 ns comparator with separate input and output supplies, thus enabling the input stage to be operated from ±5 V dual supplies or a +5 V single supply while maintaining a CMOS/TTL-compatible output. The AD8564AR is suitable for High Speed Timing Line Receivers, Data Communications, High Speed V-to-F Converters, Battery Operated Instrumentation, High Speed Sampling Systems, Window Comparators, Read Channel Detection, PCMCIA Cards and Upgrade for MAX901 Designs.
Parametrics
AD8564AR absolute maximum ratings: (1)Total Analog Supply Voltage: +14 V; (2)Digital Supply Voltage: +17 V; (3)Analog Positive Supply–Digital Positive Supply:–600 mV; (4)Input Voltage1: ±7 V; (5)Differential Input Voltage: ±8 V; (6)Output Short-Circuit Duration to GND: Indefinite; (7)Storage Temperature Range N, R, RU Package: –65℃ to +150℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Junction Temperature Range N, R, RU Package: –65℃ to +150℃; (10)Lead Temperature Range (Soldering, 10 sec): +300℃.
Features
AD8564AR features: (1)+5 V Single-Supply Operation; (2)7 ns Propagation Delay; (3)Low Power; (4)Separate Input and Output Sections; (5)TTL and CMOS Logic Compatible Outputs; (6)Wide Output Swing; (7)TSSOP, SOIC and PDIP Packages.

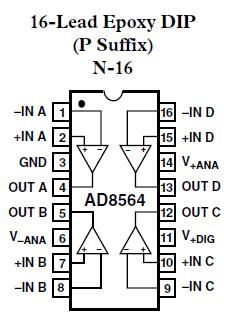

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD8564ARUZ-REEL |
IC COMP 7NS FAST QUAD 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
AD8564ARZ |
IC COMPARATOR QUAD 7NS 16-SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD8564ARZ-REEL |
IC COMPARATOR QUAD 7NS 16SOIC TR |
Data Sheet |
|
|
||||||||||||||||||||
AD8564ARZ-REEL7 |
IC COMPARATOR QUAD 7NS 16SOIC TR |
Data Sheet |
|
|
||||||||||||||||||||
AD8564ARU-REEL |
IC COMP QUAD 7NS FAST 16-TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
AD8564AR-REEL7 |
IC COMP QUAD 7NS ULT-FAST 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD8564AR-REEL |
IC COMP QUAD 7NS ULT-FAST 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD8564AR |
IC COMPARATOR QUAD 7NS 16-SOIC |
Data Sheet |
|
|
