Product Summary

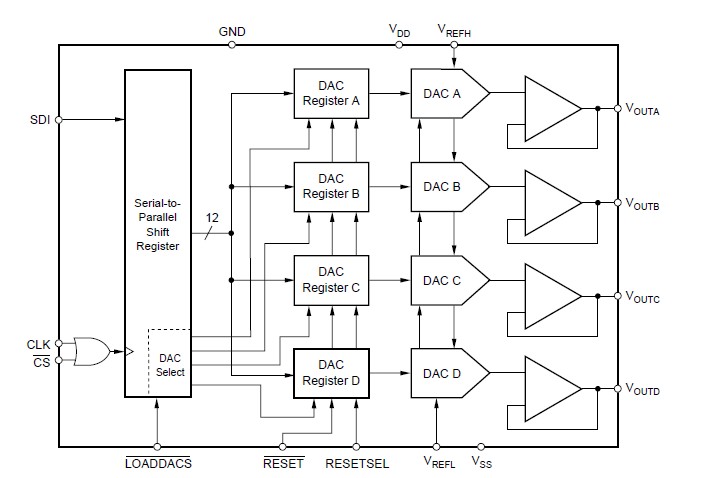

The DAC7614E is a quad, serial input, 12-bit, voltage output digital-to-analog converter (DAC) with guaranteed 12-bit monotonic performance over the –40℃ to +85℃ temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin. The DAC7614E can be powered from a single +5V supply or from dual +5V and –5V supplies. The applications of it include: ate pin electronics, process control, closed-loop servo-control, motor control, data acquisition systems.

Parametrics

DAC7614E absolute maximum ratings: (1)VDD to VSS: –0.3V to +11V; (2)VDD to GND: –0.3V to +5.5V; (3)VREFL to VSS: –0.3V to (VDD – VSS); (4)VDD to VREFH: –0.3V to (VDD – VSS); (5)VREFH to VREFL: –0.3V to (VDD – VSS); (6)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (7)Maximum Junction Temperature: +150℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7614E features: (1)low power: 20mw; (2)unipolar or bipolar operation; (3)settling time: 10μs to 0.012%; (4)12-bit linearity and monotonicity: –40℃ to +85℃; (5)user selectable reset to midscale or zero-scale; (6)second-source for dac8420; (7)small 20-lead ssop package.
