DRV1101U

fixed gain differential line driver, SOP8, ±10mA, –0.3V to 6V, high output current, 10MHz bandwidth

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: DRV1101U

Brand:: Burr-Brown Corporation - BB | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-19

From Other Seller

Part Number:DRV1101U
US $1.50 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

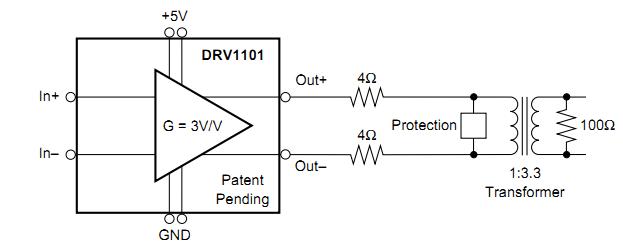

The DRV1101U is a fixed gain differential line driver designed for very low distortion operation when driving DSL line transformers. It is designed for use as the upstream line driver for ADSL G.Lite, and as both upstream and downstream line drivers in CAP systems. Operating on a single 5V supply, the DRV1101U can supply up to 230mA peak output current. The output voltage can swing up to 9.5Vp-p on a single 5V supply. In ADSL G.Lite applications, the DRV1101U can supply up to 10dBm average line power with a crest factor of 5.3 for a peak line power delivered of approximately 25dBm. It is packaged in a 8-lead SOIC. The applications of the DRV1101U include dsl twisted pair line driver, communications line driver and twisted-pair cable driver.

Parametrics

DRV1101U absolute maximum ratings: (1)Analog Inputs: Current: ±100mA, Momentary; ±10mA, Continuous; (2)Voltage: GND –0.3V to VDD +0.2V; (3)Analog Outputs Short Circuit to Ground (+25℃): Momentary; (4)Analog Outputs Short Circuit to VDD (+25℃): Momentary; (5)VDD to GND:–0.3V to 6V; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: –40 to +125℃; (8)Lead Temperature (soldering, 3s): +260℃.

Features

DRV1101U features: (1)high output current: 230mA; (2)single supply operation: 5V; (3)10MHz bandwidth: 6Vp-p into 15Ω; (4)very low thd at high power: –81dBc at 6Vp-p, 100kHz, 100Ω; (5)fixed differential gain: 3V/V.
