Product Summary
The AD977ARZ is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD977ARZ has a throughput rate of 200 kSPS whereas the AD977ARZ has a throughput rate of 100 kSPS. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high speed serial interface. The ADC is factory calibrated to minimize all linearity errors. The AD977ARZ is specified for full scale bipolar input ranges of ±10 V, ±5 V and±3.3 V, and unipolar ranges of 0 V to 10 V, 0 V to 5 V and 0 V to 4 V.
Parametrics
AD977ARZ absolute maximum ratings: (1)Analog Inputs, R1IN, R2IN , R3IN: ±25 V; CAP: +VANA + 0.3 V to AGND2 – 0.3 V; REF: Indefinite Short to AGND2, Momentary Short to VANA; (2)Ground Voltage Differences, DGND, AGND1, AGND2: ±0.3 V; (3)Supply Voltages; (4)VANA: 7 V; (5)VDIG to VANA: ±7 V; (6)VDIG: 7 V; (7)Digital Inputs: –0.3 V to VDIG + 0.3 V; (8)Internal Power Dissipation, PDIP (N), SOIC (R), SSOP (RS): 700 mW; (9)Junction Temperature: 150℃; (10)Storage Temperature Range N:–65 to +150℃; (11)Lead Temperature Range (Soldering 10 sec): 300℃.
Features
AD977ARZ features: (1)Fast 16-Bit ADC: 200 kSPS Throughput Rate—AD977A; (2)Single 5 V Supply Operation; (3)Power Dissipation 100 mW Max; (4)Power-Down Mode 50μW; (5)Input Ranges: Unipolar; 0 V–10 V, 0 V–5 V and 0 V–4 V; Bipolar; ±10 V, ±5 V and ±3.3 V; (6)Choice of External or Internal 2.5 V Reference; (7)High Speed Serial Interface; (8)On-Chip Clock; (9)20-Lead Skinny DIP or SOIC Package; (10)28-Lead Skinny SSOP Package.

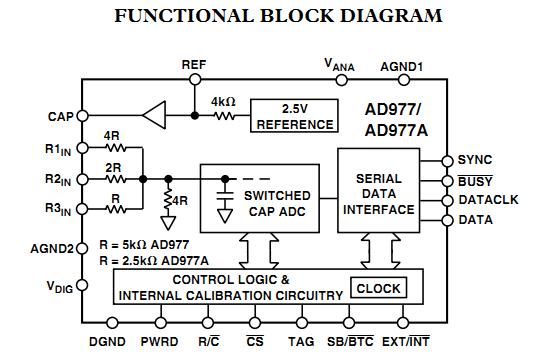

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD977ARZ |
|
IC ADC 16BIT 100KSPS 20-SOIC |
Data Sheet |
|
|
||||||||||||||
|
AD977ARZ-REEL |
|
IC ADC 16BIT 100KSPS 20SOIC |
Data Sheet |
|
|
||||||||||||||
