Product Summary
The LTC1065CSW is the first monolithic filter providing both clock-tunability with low DC output offset and over 12-bit DC accuracy. The frequency response of the LTC1065CSW closely approximates a 5th order Bessel polynomial. With appropriate PCB layout techniques the output DC offset is typically 1mV and is constant over a wide range of clock frequencies. The applications of the LTC1065CSW are Audio, Strain Gauge Amplifiers, Anti-Aliasing Filters, Low Level Filtering, Digital Voltmeters, Smoothing Filters, Reconstruction Filters.
Parametrics
LTC1065CSW absolute maximum ratings: (1)Total Supply Voltage (V+ to V–):16.5V; (2)Power Dissipation:400mW; (3)Voltage at Any Input:(V––0.3V) ≤ VIN ≤ (V+ + 0.3V); (4)Burn-In Voltage:16V; (5)Storage Temperature Range:–65℃ to 150℃; (6)Operating Temperature Range:0℃ to 70℃; (7)Lead Temperature (Soldering, 10 sec):300℃.
Features
LTC1065CSW features: (1)Clock-Tunable Cutoff Frequency; (2)1mV DC Offset (Typical); (3)80dB CMR (Typical); (4)Internal or External Clock; (5)50μVRMS Clock Feedthrough; (6)100:1 Clock-to-Cutoff Frequency Ratio; (7)80μVRMS Total Wideband Noise; (8)0.004% Noise + THD at 2VRMS Output Level; (9)50kHz Maximum Cutoff Frequency; (10)Cascadable for Faster Roll-Off; (11)Operates from ±2.375 to ±8V Power Supplies; (12)Self-Clocking with 1 RC; (13)Available in 8-Pin DIP and 16-Pin SW Packages.

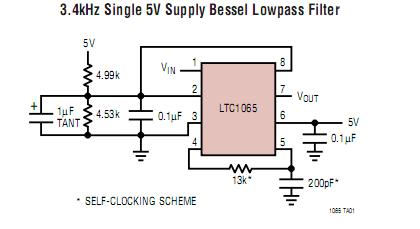

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1065CSW#TRPBF |
|
IC FILTR 5TH ORDR LOWPASS 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1065CSW#TR |
|
IC FILTER LP 5TH ORD LIN 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1065CSW#PBF |
|
IC FILTR 5TH ORDR LOWPASS 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1065CSW |
|
IC FILTR 5TH ORDR LOWPASS 16SOIC |
Data Sheet |
|
|
||||||||||
