Product Summary
The AD9851BRS is a highly integrated device that uses advanced DDS technology, coupled with an internal high speed, high performance D/A converter, and comparator, to form a digitally-programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9851BRS generates a stable frequency and phase-programmable digitized analog output sine wave. The applications of the AD9851BRS include Frequency/Phase-Agile Sine Wave Synthesis, Clock Recovery and Locking Circuitry for Digital Communications, Digitally Controlled ADC Encode Generator, Agile L.O. Applications in Communications, Quadrature Oscillator and CW, AM, FM, FSK, MSK Mode Transmitter.
Parametrics
AD9851BRS absolute maximum ratings: (1)Maximum Junction Temperature: +150℃; (2)Storage Temperature: –65 to +150℃; (3)VS: +6 V; (4)Operating Temperature: –40 to +85℃; (5)Digital Inputs: –0.7 V to +VS + 0.7 V; (6)Lead Temperature (10 sec) Soldering: +300℃; (7)Digital Output Current: 30 mA; (8)SSOP θJA Thermal Impedance: 82℃/W; (9)DAC Output Current: 30 mA.
Features
AD9851BRS features: (1)180 MHz Clock Rate with Selectable 63 Reference Clock Multiplier; (2)On-Chip High Performance 10-Bit DAC and High Speed Comparator with Hysteresis; (3)SFDR >43 dB @ 70 MHz AOUT; (4)32-Bit Frequency Tuning Word; (5)Simplified Control Interface: Parallel or Serial Asynchronous Loading Format; (6)5-Bit Phase Modulation and Offset Capability; (7)Comparator Jitter <80 ps p-p @ 20 MHz; (8)+2.7 V to +5.25 V Single Supply Operation; (9)Low Power: 555 mW @ 180 MHz; (10)Power-Down Function, 4 mW @ +2.7 V; (11)Ultrasmall 28-Lead SSOP Packaging.

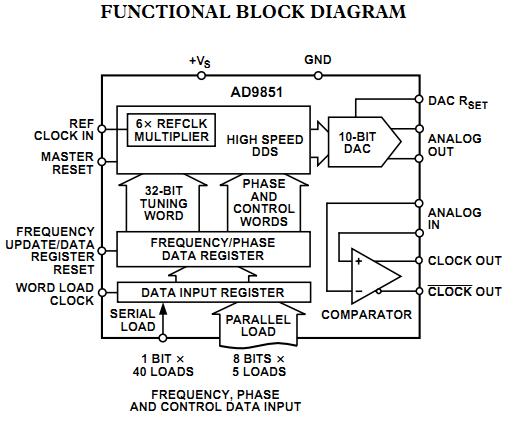

Diagrams
qishi
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9851BRS |
|
IC DDS DAC W/COMP 180MHZ 28-SSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD9851BRSRL |
|
IC DDS/DAC SYNTHESIZER 28-SSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD9851BRSZ |
|
IC SYNTHESIZER DDS/DAC 28-SSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD9851BRSZRL |
|
IC SYNTHESR DDS/DAC 28SSOP TR |
Data Sheet |
|
|
||||||||||||||||
