MAX192BCWP

low-cost, 10-bit data-acquisition system, SOP20, -0.3V to +6V, 25mA, Low Power, Internal 4.096V Reference

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~5.50

PartNumber:: MAX192BCWP

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:MAX192BCWP
US $5.00 - 5.50
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

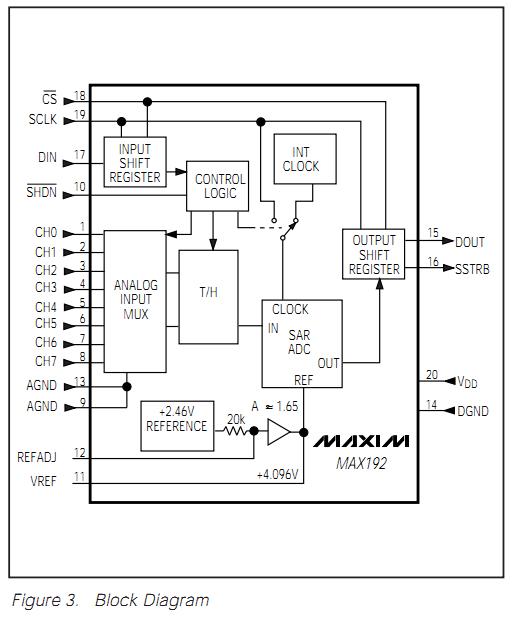

The MAX192BCWP is a low-cost, 10-bit data-acquisition system that combines an 8-channel multiplexer, high-bandwidth track/hold, and serial interface with high conversion speed and ultra-low power consumption. The MAX192BCWP operates with a single +5V supply. The analog inputs are software configurable for single-ended and differential (unipolar/bipolar) operation. The applications of the MAX192BCWP include Automotive, Pen-Entry Systems, Consumer Electronics Portable Data Logging, Robotics, Battery-Powered Instruments, Battery Management and Medical Instruments.

Parametrics

MAX192BCWP absolute maximum ratings: (1)VDD to AGND: -0.3V to +6V; (2)AGND to DGND: -0.3V to +0.3V; (3)CH0–CH7 to AGND, DGND: -0.3V to (VDD + 0.3V); (4)CH0–CH7 Total Input Current: ±20mA; (5)VREF to AGND: -0.3V to (VDD + 0.3V); (6)REFADJ to AGND: -0.3V to (VDD + 0.3V); (7)Digital Inputs to DGND: -0.3V to (VDD + 0.3V); (8)Digital Outputs to DGND: -0.3V to (VDD + 0.3V); (9)Digital Output Sink Current: 25mA; (10)Continuous Power Dissipation: 889mW; (11)Operating Temperature Ranges: 0 to +70℃; (12)Storage Temperature Range: -60 to +150℃; (13)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX192BCWP features: (1)8-Channel Single-Ended or 4-Channel Differential Inputs; (2)Single +5V Operation; (3)Low Power: 1.5mA (operating) 2μA (power-down); (4)Internal Track/Hold, 133kHz Sampling Rate; (5)Internal 4.096V Reference; (6)4-Wire Serial Interface is Compatible with SPI, QSPI, Microwire, and TMS320; (7)20-Pin DIP, SO, SSOP Packages; (8)Pin-Compatible 12-Bit Upgrade.
