MAX187BCWE

12-bit analog-to-digital converter, -0.3V to +6V, 500mW, 4.0mA, 75kHz Sampling Rate, Low Power, SOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.80~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.80~5.50

PartNumber:: MAX187BCWE

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-18

From Other Seller

Part Number:MAX187BCWE
US $4.80 - 5.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

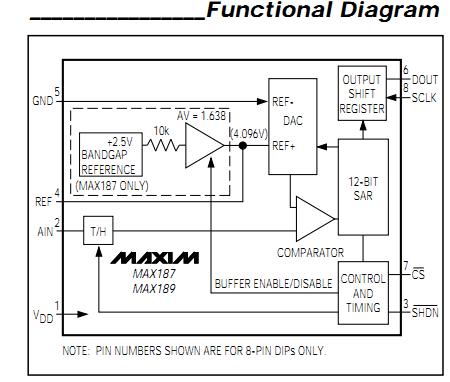

The MAX187BCWE is a 12-bit analog-to-digital converter (ADC). The device operates from a single +5V supply and accepts a 0V to 5V analog input. Both parts feature an 8.5μs successive-approximation ADC, a fast track/hold (1.5μs), an on-chip clock, and a high-speed 3-wire serial interface. The applications of the MAX187BCWE include Portable Data Logging, Remote Digital Signal Processing, Isolated Data Acquisition and High-Accuracy Process Control.

Parametrics

MAX187BCWE absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)AIN to GND: -0.3V to (VDD + 0.3V); (3)REF to GND: -0.3V to (VDD + 0.3V); (4)Digital Inputs to GND: -0.3V to (VDD + 0.3V); (5)Digital Outputs to GND: -0.3V to (VDD + 0.3V); (6)SHDN to GND: -0.3V to (VDD + 0.3V); (7)REF Load Current: 4.0mA Continuous; (8)REF Short-Circuit Duration: 20sec; (9)DOUT Current±20mA; (10)Continuous Power Dissipation: 500mW; (11)Operating Temperature Ranges: 0℃ to +70℃; (12)Storage Temperature Range: -60℃ to +150℃; (13)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX187BCWE features: (1)12-Bit Resolution; (2)±1/2 LSB Integral Nonlinearity; (3)Internal Track/Hold, 75kHz Sampling Rate; (4)Single +5V Operation; (5)Low Power: 2μA Shutdown Current; 1.5mA Operating Current; (6)Internal 4.096V Buffered Reference; (7)3-Wire Serial Interface, Compatible with SPI, QSPI, and Microwire; (8)Small-Footprint 8-Pin DIP and 16-Pin SO.
