MAX542BCSD

5V, serial-input, voltage-output, 16-bit digital-to-analog converter, SO14, low power

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.50~9.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.50~9.50

PartNumber:: MAX542BCSD

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-17

From Other Seller

Part Number:MAX542BCSD
US $8.50 - 9.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

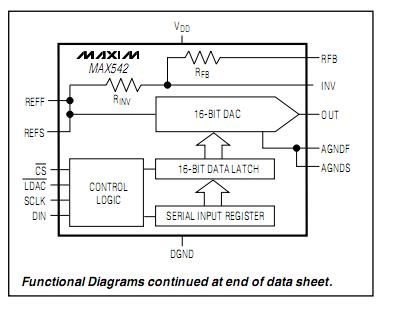

The MAX542BCSD is a serial-input, voltage-output, 16-bit digital-to-analog converter. It provides 16-bit performance (±1LSB INL and DNL) over temperature without any adjustments. The DAC output is unbuffered, resulting in a low supply current of 0.3mA and a low offset error of 1LSB. The MAX542BCSD also includes Kelvin-sense connections for the reference and analog ground pins to reduce layout sensitivity. The applications of the MAX542BCSD are High-Resolution Offset and Gain Adjustment, Industrial Process Control, Automated Test Equipment, Data-Acquisition Systems.

Parametrics

MAX542BCSD absolute maximum ratings: (1)VDD to DGND:-0.3V to +6V; (2)CS, SCLK, DIN, LDAC to DGND:-0.3V to +6V; (3)REF, REFF, REFS to AGND:-0.3V to (VDD + 0.3V); (4)AGND, AGNDF, AGNDS to DGND:-0.3V to +0.3V; (5)OUT, INV to AGND, DGND:-0.3V to VDD; (6)RFB to AGND, DGND:-6V to +6V; (7)Maximum Current into Any Pin:50mA; (8)Continuous Power Dissipation:471mW; (9)Operating Temperature Ranges:0℃ to +70℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10s):+300℃.

Features

MAX542BCSD features: (1)Full 16-Bit Performance Without Adjustments; (2)+5V Single-Supply Operation; (3)Low Power: 1.5mW; (4)1μs Settling Time ; (5)Unbuffered Voltage Output Directly Drives 60kΩ Loads; (6)SPI/QSPI/MICROWIRE-Compatible Serial Interface; (7)Power-On Reset Circuit Clears DAC Output to 0V(unipolar mode); (8)Schmitt Trigger Inputs for Direct Optocoupler Interface.
