Product Summary

The REF192ES is a precision band gap voltage reference. It used a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. The applications of the REF192ES include Portable instruments, ADCs and DACs, Smart sensors, Solar-powered applications and Loop current-powered instruments.

Parametrics

REF192ES absolute maximum ratings: (1)Supply Voltage: -0.3 V, +18 V; (2)Output to GND: -0.3 V, VS + 0.3 V; (3)Output to GND Short-Circuit Duration: Indefinite; (4)Storage Temperature Range: -65℃to +150℃; (5)Operating Temperature Range: -40℃to +85℃; (6)Junction Temperature Range: -65℃to +150℃; (7)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

REF192ES features: (1)Initial accuracy: ±2 mV maximum; (2)Temperature coefficient: 5 ppm/℃ maximum; (3)Low supply current: 45 μA maximum; (4)Sleep mode: 15 μA maximum; (5)Low dropout voltage; (6)Load regulation: 4 ppm/mA; (7)Line regulation: 4 ppm/V; (8)High output current: 30 mA; (9)Short-circuit protection.

Diagrams

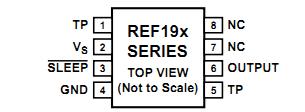

REF192ES pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
REF192ESZ
REF192ESZ


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

0-1: $3.43
1-10: $3.06
10-100: $2.51
100-250: $2.27
250-500: $2.03
500-1000: $1.72
1000-2500: $1.63
REF192ESZ-REEL
REF192ESZ-REEL


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

0-2500: $1.63
REF192ESZ-REEL7
REF192ESZ-REEL7


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

0-1000: $1.72
REF192ES-REEL7
REF192ES-REEL7


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

Negotiable
REF192ES-REEL
REF192ES-REEL


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

0-2500: $1.81
REF192ES
REF192ES


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

Negotiable
