Product Summary

The A2982SLW is an 8-channel source driver. The A2982SLW is useful for interfacing between low-level logic and high-current loads. Typical loads of the A2982SLW include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs. The device may be used with 5 V logic systems — TTL, Schottky TTL, DTL, and 5 V CMOS. The A2982SLW is electrically interchangeable, will withstand a maximum output off voltage of 50 V, and operate to a minimum of 5 V. The device integrates input current limiting resistors and output transient suppression diodes, and is activated by an active high input.

Parametrics

A2982SLW absolute maximum ratings: (1)Output Voltage Range, VCE: 5 V to 50 V; (2)Input Voltage, VIN: 20 V; (3)Output Current, IOUT: -500 mA; (4)Operating Temperature Range, TA: -20 to +85℃; (5)Storage Temperature Range,TS: -55 to +150℃.

Features

A2982SLW features: (1)TTL, DTL, PMOS, or CMOS Compatible Inputs; (2)500 mA Output Source Current Capability; (3)Transient-Protected Outputs; (4)Output Breakdown Voltage to 50 V; (5)DIP or SOIC Packaging.

Diagrams

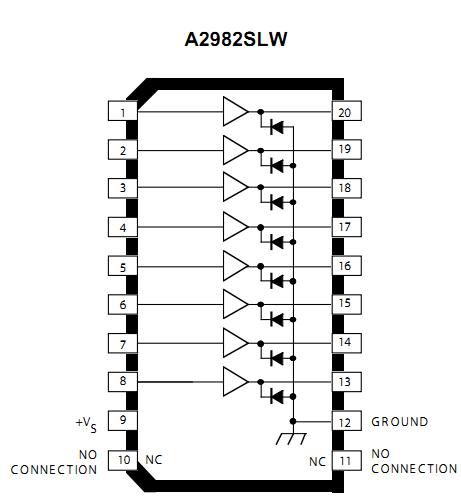

A2982SLW pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A2982SLW
A2982SLW

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
Negotiable
A2982SLW-T
A2982SLW-T

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
0-1332: $0.64
A2982SLWTR-T
A2982SLWTR-T

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
0-1: $1.51
1-10: $1.37
10-50: $1.22
50-100: $1.10
100-250: $0.98
250-500: $0.85
500-1000: $0.71
A2982SLWTR
A2982SLWTR

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
Negotiable
