Product Summary

The AD5541JR is a 16-bit, Serial-Input Voltage-Output DAC that operates from a single 5 V ± 10%supply. It provides 16-bit performance without any adjustments. The AD5541JR output is unbuffered, which reduces power consumption and offset errors contributed to by an output buffer. The applications of the AD5541JR are Digital Gain and Offset Adjustment, Automatic Test Equipment, Data Acquisition Systems, Industrial Process Control. It is available in an SO package.

Parametrics

AD5541JR absolute maximum ratings: (1)VDD to AGND:–0.3 V to +6 V; (2)Digital Input Voltage to DGND:–0.3 V to VDD + 0.3 V; (3)VOUT to AGND:–0.3 V to VDD + 0.3 V; (4)AGND, AGNDF, AGNDS to DGND:–0.3 V to +0.3 V; (5)Input Current to Any Pin Except Supplies:±10 mA; (6)Operating Temperature Range: Industrial (A, B, C Versions):–40℃ to +85℃, Commercial (J, L Versions):0℃ to 70℃; (7)Storage Temperature Range:–65℃ to +150℃; (8)Maximum Junction Temperature, (TJ max):150℃; (9)Package Power Dissipation:149.5℃/W; (10)Lead Temperature, Soldering: Vapor Phase (60 sec):215℃, Infrared (15 sec):220℃.

Features

AD5541JR features: (1)Full 16-Bit Performance; (2)5 V Single Supply Operation; (3)Low Power; (4)Short Settling Time; (5)Unbuffered Voltage Output Capable of Driving 60 kV Loads Directly; (6)SPI/QSPI/MICROWIRE-Compatible Interface Standards; (7)Power-On Reset Clears DAC Output to 0 V (Unipolar Mode); (8)Schmitt Trigger Inputs for Direct Optocoupler Interface.

Diagrams

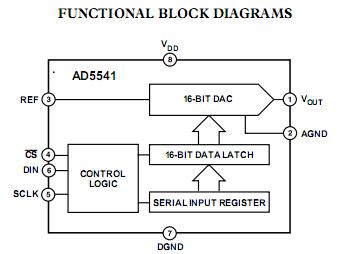

AD5541JR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD5541JR
AD5541JR

IC DAC 16BIT SERIAL-IN 8-SOIC
Data Sheet
0-23: $10.55
AD5541JR-REEL7
AD5541JR-REEL7

IC DAC 16BIT SERIAL-IN 8-SOIC
Data Sheet
0-1000: $7.60
AD5541JRZ
AD5541JRZ

IC DAC 16BIT SERIAL IN 8-SOIC
Data Sheet
0-1: $10.87
1-10: $9.88
10-100: $8.40
100-250: $7.66
250-500: $7.16
500-1000: $6.59
AD5541JRZ-REEL7
AD5541JRZ-REEL7

IC DAC 16BIT SRL IN/VOUT 8-SOIC
Data Sheet
0-1000: $6.59
