AD977ARS

high speed, low power 16-bit A/D converter, SSOP28, 700 mW, 7 V, Power-Down Mode, High Speed Serial Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.50~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.50~8.00

PartNumber:: AD977ARS

Brand:: Analog Devices - ADI | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:AD977ARS
US $7.50 - 8.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

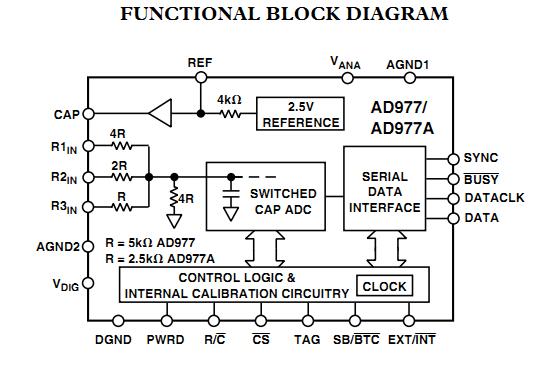

The AD977ARS is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD977ARS has a throughput rate of 200 kSPS whereas the AD977ARS has a throughput rate of 100 kSPS. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high speed serial interface. The ADC is factory calibrated to minimize all linearity errors. The AD977ARS is specified for full scale bipolar input ranges of ±10 V, ±5 V and ±3.3 V, and unipolar ranges of 0 V to 10 V, 0 V to 5 V and 0 V to 4 V.

Parametrics

AD977ARS absolute maximum ratings: (1)Analog Inputs, R1IN, R2IN , R3IN: ±25 V; CAP: +VANA + 0.3 V to AGND2 – 0.3 V; REF: Indefinite Short to AGND2, Momentary Short to VANA; (2)Ground Voltage Differences, DGND, AGND1, AGND2: ±0.3 V; (3)Supply Voltages, VANA: 7 V; VDIG to VANA: ±7 V; VDIG: 7 V; (4)Digital Inputs: –0.3 V to VDIG + 0.3 V; (5)Internal Power Dissipation, PDIP (N), SOIC (R), SSOP (RS): 700 mW; (6)Junction Temperature: 150℃; (7)Storage Temperature Range N, R: –65 to +150℃; (8)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

AD977ARS features: (1)Fast 16-Bit ADC: 200 kSPS Throughput Rate; (2)Single 5 V Supply Operation; (3)Power Dissipation 100 mW Max; (4)Power-Down Mode 50μW; (5)Input Ranges: Unipolar; 0 V–10 V, 0 V–5 V and 0 V–4 V; Bipolar; ±10 V, ±5 V and ±3.3 V; (6)Choice of External or Internal 2.5 V Reference; (7)High Speed Serial Interface; (8)On-Chip Clock; (9)20-Lead Skinny DIP or SOIC Package; (10)28-Lead Skinny SSOP Package.
