Product Summary
The AD604ARZ is an ultralow noise, very accurate, dual-channel, linear-in-dB variable gain amplifier (VGA) optimized for time-based variable gain control in ultrasound applications; however, it supports any application requiring low noise, wide bandwidth, variable gain control. Each channel of the AD604ARZ provides a 300 kΩ input resistance and unipolar gain control for ease of use. User-determined gain ranges, gain scaling (dB/V), and dc level shifting of output further optimize performance.
Parametrics
Absolute maximum ratings: (1)Supply Voltage ±VS, Pin 17 to Pin 20 (with Pin 16, Pin 22 = 0 V): ±6.5 V; (2)Input Voltages: Pin 1, Pin 2, Pin 11, Pin 12: VPOS/2 ± 2 V continuous; Pin 4, Pin 9: ±2 V; Pin 5, Pin 8: VPOS, VNEG; Pin 6, Pin 7, Pin 13, Pin 14, Pin 23, Pin 24: VPOS, 0 V; (3)Internal Power Dissipation: PDIP (N): 2.2 W; SOIC (RW): 1.7 W; SSOP (RS): 1.1 W; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature, Soldering 60 sec: 300℃; (7)θJA: 73℃/W; (8)θJC: 38℃/W.
Features
Features: (1)Ultralow input noise at maximum gain: 0.80 nV/√Hz, 3.0 pA/√Hz; (2)2 independent linear-in-dB channels; (3)Absolute gain range per channel programmable; (4)0 dB to 48 dB (preamplifier gain = 14 dB) through 6 dB to 54 dB (preamplifier gain = 20 dB); (5)±1.0 dB gain accuracy; (6)Bandwidth: 40 MHz (-3 dB); (7)Input resistance: 300 kΩ; (8)Variable gain scaling: 20 dB/V through 40 dB/V; (9)Stable gain with temperature and supply variations; (10)Single-ended unipolar gain control; (11)Power shutdown at lower end of gain control; (12)Drive ADCs directly.

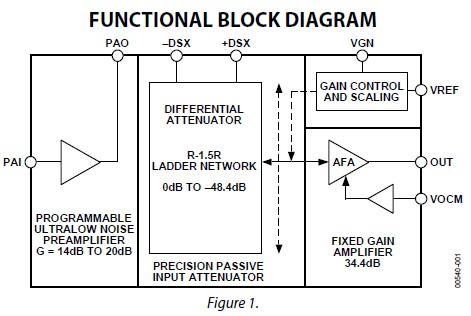

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD604ARZ |
|
IC AMP VGA DUAL ULN 40MA 24SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD604ARZ-RL |
|
IC AMP VGA DUAL ULN 40MA 24SOIC |
Data Sheet |
|
|
||||||||||||||||
