Product Summary
The AD8611ARZ is a single and dual 4 ns comparator with latch function and complementary output. The latch is not functional if VCC is less than 4.3 V. The applications of the AD8611ARZ include High speed timing, Clock recovery and clock distribution, Line receivers, Digital communications, Phase detectors, High speed sampling, Read channel detection, PCMCIA cards, Zero-crossing detector, High speed analog-to-digital converter (ADC) and Upgrade for LT1394 and LT1016 designs.
Parametrics
AD8611ARZ absolute maximum ratings: (1)Total Analog Supply Voltage: 7.0 V; (2)Digital Supply Voltage: 7.0 V; (3)Input Voltage: ±4 V; (4)Differential Input Voltage: ±5 V; (5)Output Short-Circuit Duration to GND: Indefinite; (6)Storage Temperature Range: -65℃ to +150℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Junction Temperature Range: -65℃ to +150℃; (9)Lead Temperature Range (Soldering, 10 sec): 300℃.
Features
AD8611ARZ features: (1)4 ns propagation delay at 5 V; (2)Single-supply operation: 3 V to 5 V; (3)100 MHz input; (4)Latch function.

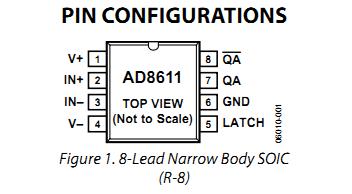

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8611ARZ |
|
IC COMP SNGL 4NS ULTRFAST 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8611ARZ-REEL |
|
IC COMP SGL 4NS ULTRFAST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8611ARZ-REEL7 |
|
IC COMP SGL 4NS ULTRFAST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
