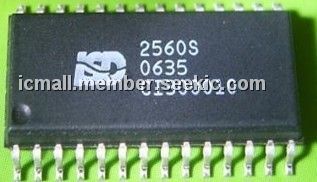

ISD2560S

Single-Chip, Voice Record/Playback Device, SOP28, Single +5 volt power supply, ChipCorder

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~7.00

PartNumber:: ISD2560S

Brand:: International Software Development (Shenzhen) Co. Ltd. - ISD | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken(E-mail: rantle-east@vip.163.com)'s store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-17

From Other Seller

Part Number:ISD2560S
US $6.00 - 7.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

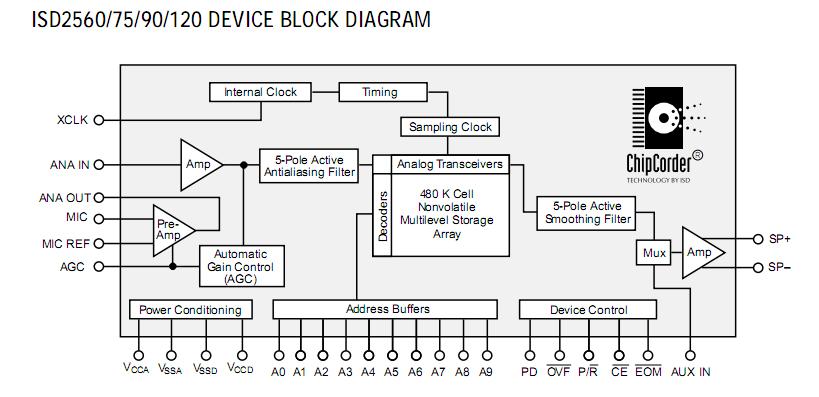

The ISD2560S is a ChipCorder. It provides high-quality, single-chip Record/Playback solutions for 32- to 120 second messaging applications. The ISD2560S includes an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multi-level storage array. In addition, the ISD2560S is microcontroller compatible, allowing complex messaging and addressing to be achieved. Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage.

Parametrics

ISD2560S absolute maximum ratings: (1)Junction temperature:150℃; (2)Storage temperature range:–65℃ to +150℃; (3)Voltage applied to any pad:(VSS – 0.3 V) to (VCC + 0.3 V); (4)Voltage applied to any pad (Input current limited to + 20 mA):(VSS – 1.0 V) to (VCC + 1.0 V); (5)VCC - VSS:-0.3 V to + 7.0 V.

Features

ISD2560S features: (1)Easy-to-use single-chip voice Record/Playback solution; (2)High-quality, natural voice/audio reproduction; (3)Manual switch or microcontroller compatible Playback can be edge- or level-activated; (4)Single-chip durations of 32*, 40*, 48*, 64*, 60, 75, 90, and 120 seconds ; (5)Directly cascadable for longer durations; (6)Automatic Power-Down (Push-Button Mode):Standby current 1μA(typical); (7)Zero-power message storage:Eliminates battery backup circuits; (8)Fully addressable to handle multiple messages; (9)100-year message retention (typical) ; (10)100,000 record cycles (typical); (11)On-chip clock source; (12)No algorithm development required; (13)Single +5 volt power supply; (14)Available in die form, DIP, SOIC, and TSOP packaging; (15)Industrial temperature (-40℃ to +85℃) versions available.
