Product Summary
The LT1014DSW is a precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The applications of the LT1014DSW include Battery-Powered Precision Instrumentation, Strain Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA–20mA Current Loop Transmitters, Multiple Limit Threshold Detection, Active Filters and Multiple Gain Blocks
Parametrics
LT1014DSW absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range; (6)All Grades: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃; (8)Operating Temperature Range: 0℃ to 70℃.
Features
LT1014DSW features: (1)ingle Supply Operation: Input Voltage Range Extends to Ground; Output Swings to Ground while Sinking Current; (2)Pin Compatible to 1458 and 324 with Precision Specs; (3)Guaranteed Offset Voltage: 150μV Max; (4)Guaranteed Low Drift: 2μV/℃ Max; (5)Guaranteed Offset Current: 0.8nA Max; (6)Guaranteed High Gain: 5mA Load Current: 1.5 Million Min; 17mA Load Current: 0.8 Million Min; (7)Guaranteed Low Supply Current: 500μA Max; (8)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (9)Low Current Noise—Better than 0P-07, 0.07pA/Hz.

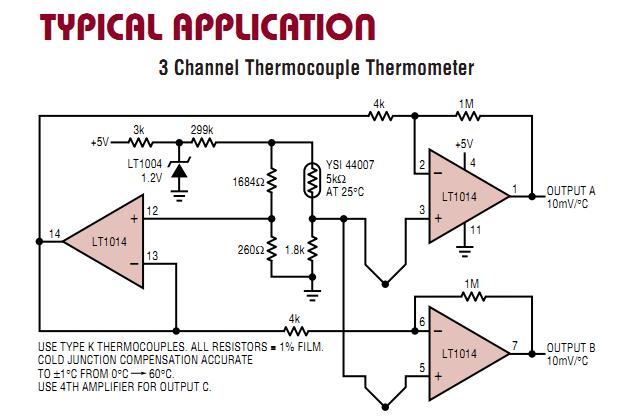

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1014DSW |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#PBF |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#TR |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#TRPBF |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
