Product Summary
The LT1252CS8 is a low cost current feedback amplifier for video applications. The LT1252CS8 is ideal for driving low impedance loads such as cables and filters. The wide bandwidth and high slew rate of this amplifier make driving RGB signals between PCs and workstations easy. The linearity of the LT1252CS8 is outstanding; it is unsur-passed for driving composite video. The device is available in the 8-pin DIP and the S8 surface mount package. The applications of the LT1252CS8 include RGB Cable Drivers, Composite Video Cable Drivers and Gain Blocks in IF Stages.
Parametrics
LT1252CS8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 28V; (2)Input Current: ±15mA; (3)Output Short-Circuit Duration:. Continuous; (4)Operating Temperature Range: 0 to 70℃; (5)Storage Temperature Range: – 65 to 150℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1252CS8 features: (1)Low Cost; (2)Current Feedback Amplifier; (3)Differential Gain: 0.01%, RL = 150Ω, VS = ±5V; (4)Differential Phase: 0.09°, RL = 150Ω, VS = ±5V; (5)Flat to 30MHz, 0.1dB; (6)100MHz Bandwidth on ±5V; (7)Wide Supply Range: ±2V(4V) to ±14V(28V); (8)Low Power: 85mW at ±5V.

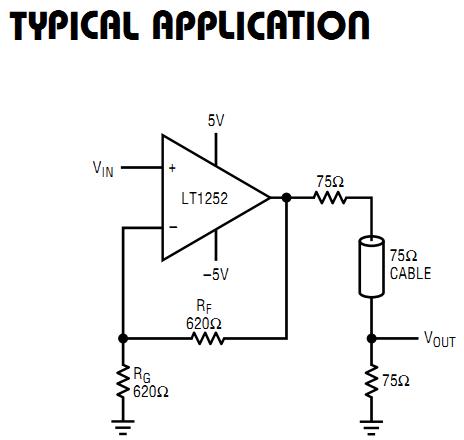

Diagrams
