Product Summary
The RTC8583A is a I2C-bus compatible real time clock module.
Parametrics
RTC8583A absolute maximum ratings: (1)Supply voltage, VDD: -0.8 to 7.0V when VDD-GND; (2)Input voltage, VIN: VDD+0.8V max; (3)Input current, Ii: 10mA max; (4)Output current, Io: 10mA max; (5)Storage temperature, Tstg: -55 to 125℃.
Features
RTC8583A features: (1)Builtin crystal unit. Adjustment free with 10pF external capacitor; (2)Small package (SOP 14-pin); (3)Three mode operations: internal crystal oscillation, external 50 Hz clock and event counter; (4)I2C-Bus inter face compatible; (5)Builtin 240 x 8 bit S-RAM available; (6)Alarm and timer functions available; (7)Wide operating voltage range 2.5V to 6.0V; (8)?Wide data hold voltage range 1.0V to 6.0V; (9)Low current consumption (RTC8593, 1.0μA typical).

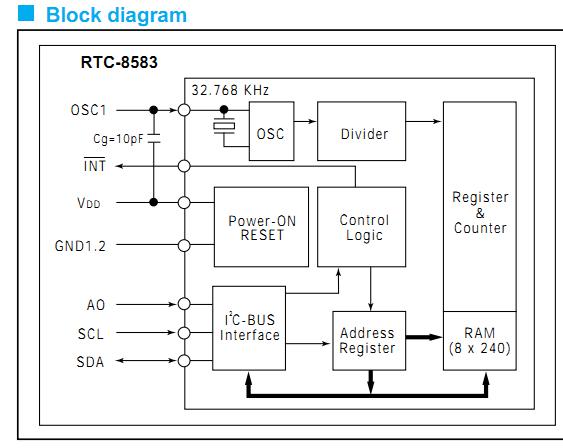

Diagrams
