Product Summary
The SSM2165-2S is a complete and flexible solution for conditioning microphone inputs in computer audio systems. It is also excellent for improving vocal clarity in communications and public address systems. The SSM2165-2S is an ideal companion product for audio codecs used in computer systems, such as the AD1845 and AD1847. The applications of the SSM2165-2S are Microphone Preamplifier/Processor, Computer Sound Cards, Public Address/Paging Systems, Communication Headsets, Telephone Conferencing, Guitar Sustain Effects Generator, Computerized Voice Recognition, Surveillance Systems, Karaoke and DJ Mixers.
Parametrics
SSM2165-2S absolute maximum ratings: (1)Supply Voltage:+10 V; (2)Audio Input Voltage:+10V; (3)Operating Temperature Range:–40℃ to +85℃; (4)Storage Temperature Range:–65℃ to +150℃; (5)Junction Temperature (TJ):+150℃; (6)Lead Temperature (Soldering, 60 sec):+300℃.
Features
SSM2165-2S features: (1)Complete Microphone Conditioner in an 8-Lead Package; (2)Single +5 V Operation; (3)Preset Noise Gate Threshold; (4)Compression Ratio Set by External Resistor; (5)Automatic Limiting Feature Prevents ADC Overload; (6)Adjustable Release Time; (7)Low Noise and Distortion; (8)20 kHz Bandwidth (±1 dB); (9)Low Cost.

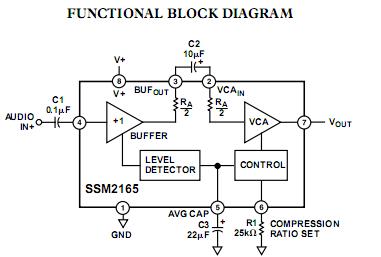

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2165-2S |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
SSM2165-2S-REEL |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
SSM2165-2S-REEL7 |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
SSM2165-2SZ |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
SSM2165-2SZ-REEL |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
SSM2165-2SZ-REEL7 |
Analog Devices Inc |
IC PREAMP AUDIO MONO AB 8SOIC |
Data Sheet |
Negotiable |
|
||||
