Product Summary
The TDA5211T is a very low power consumption single conversion receiver for the frequency band 310 to 350 MHz. The device offers a high level of integration and needs only a few external components. The TDA5211T contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, a data comparator (slicer) and a peak detector. Applications include: Keyless Entry Systems, Remote Control Systems, Alarm Systems, Low Bitrate Communication Systems.
Parametrics
TDA5211T absolute maximum ratings: (1)Supply Voltage Vs: min=-0.3 V, max=5.5 V; (2)Junction Temperature Tj: min=-40 ℃, max=+150 ℃; (3)Storage Temperature Ts: min=-40 ℃, max=+125 ℃; (4)Thermal Resistance RthJA 114 K/W; (5)ESD integrity, all pins excl. Pins 1,3, 6, 28 VESD: max=+2kV; ESD integrity Pins 1,3,6,28 VESD: max=+1.5 kV.
Features
TDA5211T features: (1)Low supply current (Is = 5.7 mA typ. in FSK mode, Is = 5 mA typ. in ASK mode); (2)Supply voltage range 5V ±10%; (3)Power down mode with very low supply current (50nA typ.); (4)FSK and ASK demodulation capability; (5)Fully integrated VCO and PLL Synthesiser; (6)ASK sensitivity better than -110 dBm over specified temperature range (- 40 to +105℃); (7)Selectable frequency ranges 310-330 MHz and 330-350 MHz; (8)Limiter with RSSI generation, operating at 10.7MHz; (9)Selectable reference frequency.

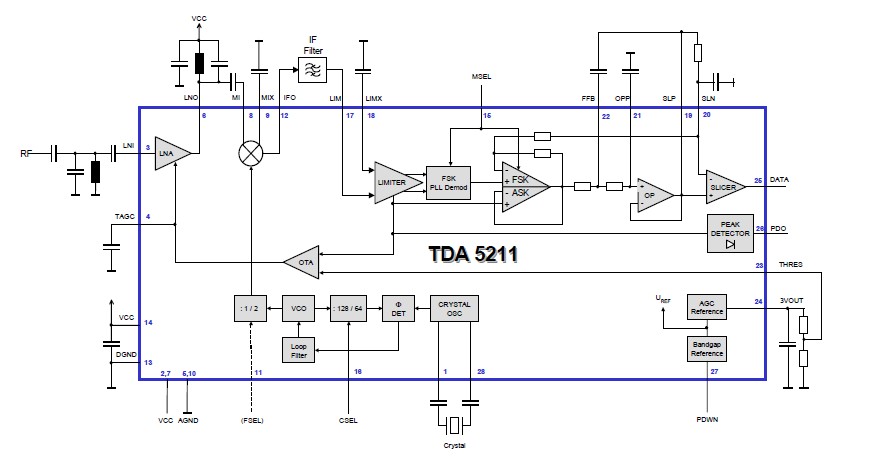

Diagrams
 |
