Product Summary
The TLP281-4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA Fax modem, programmable controllers. TLP281-4 consists of photo transistor, optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP281-4 absolute maximum ratings: (1)Forward Current IF: 50 mA; (2)Forward Current Derating ΔIF /℃: -0.5 (Ta≥25℃) mA /℃; (3)Pulse Forward Current IFP: 1 A; (4)Reverse Voltage VR: 5 V; (5)Junction Temperature Tj: 125 ℃; (6)Collector-Emitter Voltage VCEO: 80 V; (7)Emitter-Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA; (9)Collector Power Dissipation (1 Circuit) PC: 100 mW; (10)Collector Power Dissipation Derating(Ta≥25℃) (1 Circuit) ΔPC /℃: -1.0 mW /℃; (11)Junction Temperature Tj: 125 ℃.
Features
TLP281-4 features: (1)Collector-Emitter Voltage : 80 V (MIN); (2)Current Transfer Ratio : 50% (MIN); (3)Rank GB : 100% (MIN); (4)Isolation Voltage : 2500 Vrms (MIN); (5)UL Recognized : UL1577 , File No. E67349.

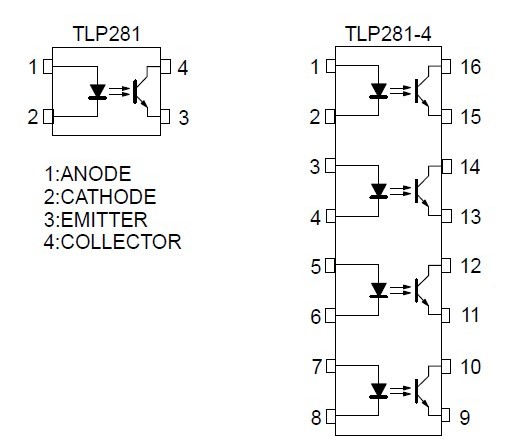

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP281-4 |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms 4 channels |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
TLP281-4(GB) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB,J,F) |
Toshiba |
Transistor Output Optocouplers Photocouplr AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB,TP,J,F) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
|
|
||||||||||||||||||
|
TLP281-4(GB-TP) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB-TP,J,F |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms 4 channels |
Data Sheet |
|
|
||||||||||||||||||
|
TLP281-4(GB-TP,J,FX) |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(TP,J,F) |
Toshiba |
Transistor Output Optocouplers Photocouplr AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
