Product Summary

The TPS767D318PWP dual voltage regulator is designed primarily for DSP applications. The TPS767D318PWP can be used in any mixed-output voltage application, with each regulator supporting up to 1 A. Dual active-low reset signals allow resetting of core-logic and I/O separately. The TPS767D318PWP is offered in 1.8-V, 2.5-V, and 3.3-V fixed-voltage versions and in an adjustable version programmable over the range of 1.5 V to 5.5 V). Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges. The TPS767D318PWP family is available in 28 pin PWP TSSOP package. They operate over a junction temperature range of -40℃ to 125℃.

Parametrics

TPS767D318PWP absolute maximum ratings: (1)Input voltage range, VI: -0.3 V to 13.5 V; (2)Input voltage range, VI (1IN, 2IN, EN): -0.3 V to VI + 0.3 V; (3)Output voltage, VO (1OUT, 2OUT): 7 V; (4)Output voltage, VO (RESET): 16.5 V; (5)Peak output current: Internally limited; (6)ESD rating, HBM: 2 kV; (7)Continuous total power dissipation: See dissipation rating tables; (8)Operating virtual junction temperature range, TJ: -40℃ to 125℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS767D318PWP features: (1)Dual Output Voltages for Split-Supply Applications; (2)Output Current Range of 0 mA to 1.0 A Per Regulator; (3)3.3-V/2.5-V, 3.3-V/1.8-V, and 3.3-V/Adjustable Output; (4)Fast-Transient Response; (5)2% Tolerance Over Load and Temperature; (6)Dropout Voltage Typically 350 mV at 1 A; (7)Ultra Low 85 mA Typical Quiescent Current; (8)1 mA Quiescent Current During Shutdown; (9)Dual Open Drain Power-On Reset With 200-ms Delay for Each Regulator; (10)28-Pin PowerPADE TSSOP Package; (11)Thermal Shutdown Protection for Each Regulator.

Diagrams

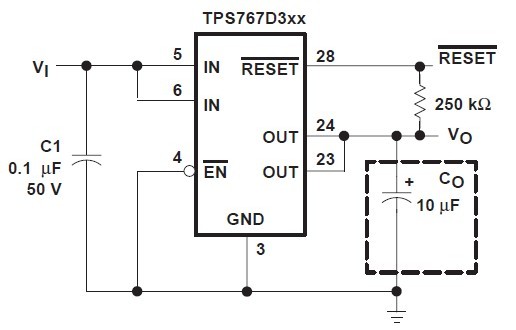

TPS767D318PWP typical application circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS767D318PWP
TPS767D318PWP
Texas Instruments
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator
Data Sheet
0-1: $3.47
1-25: $3.17
25-100: $2.54
100-250: $2.21
TPS767D318PWPG4
TPS767D318PWPG4
Texas Instruments
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator
Data Sheet
0-1: $3.53
1-25: $2.89
25-100: $2.54
100-250: $2.21
TPS767D318PWPR
TPS767D318PWPR
Texas Instruments
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator
Data Sheet
0-1335: $1.62
1335-2000: $1.56
TPS767D318PWPRG4
TPS767D318PWPRG4
Texas Instruments
Low Dropout (LDO) Regulators Dual-Output LDO Voltage Regulator
Data Sheet
0-1335: $1.62
1335-2000: $1.56
