Product Summary

The AD8369ARUZ is a high performance digitally controlled variable gain amplifier (VGA) for use from low frequencies to a -3dB frequency of 600 MHz at all gain codes. The AD8369ARUZ delivers excellent distortion performance: the two-tone, third-order intermodulation distortion is –69 dBc at 70 MHz for a 1 V p-p composite output into a 1 kW load. The AD8369ARUZ has a nominal noise figure of 7 dB when at maximum gain, then increases with decreasing gain. Output IP3 is +19.5 dBm at 70 MHz into a 1 kW load and remains fairly constant over the gain range. The applications of the AD8369ARUZ include Cellular/PCS Base Stations, IF Sampling Receivers, Fixed Wireless Access, Wireline Modems and Instrumentation.

Parametrics

AD8369ARUZ absolute maximum ratings: (1)Supply Voltage VS, VPOS: 5.5 V; (2)PWUP: VS + 200 mV; (3)BIT0, BIT1, BIT2, BIT3, DENB, SENB: VS + 200 mV; (4)Input Voltage, VINHI – VINLO: 4 V; (5)Input Voltage, VINHI or VINLO with respect to COMM: 4.5 V; (6)Input Voltage, VINHI – VINLO with respect to COMM: COMM–200mV; (7)Internal Power Dissipation: 265 mW; (8)θJA:150℃/W; (9)Maximum Junction Temperature: 125℃; (10)Operating Temperature Range: –40℃ to +85℃; (11)Storage Temperature Range: –65℃ to +150℃; (12)Lead Temperature Range (soldering 60 sec): to 300℃.

Features

AD8369ARUZ features: (1)Digitally Controlled Variable Gain in 3 dB Steps: –5 dB to +40 dB (RL = 1 kΩ); –10 dB to +35 dB (RL = 200Ω); (2)Less than 0.2 dB Flatness over a +20 MHz Bandwidth up to 380 MHz; (3)4-Bit Parallel or 3-Wire Serial Interface; (4)Differential 200Ω Input and Output Impedance; (5)Single 3.0 V–5.5 V Supply Draws 37 mA at 5 V; (6)Power-Down <1 mA Maximum.

Diagrams

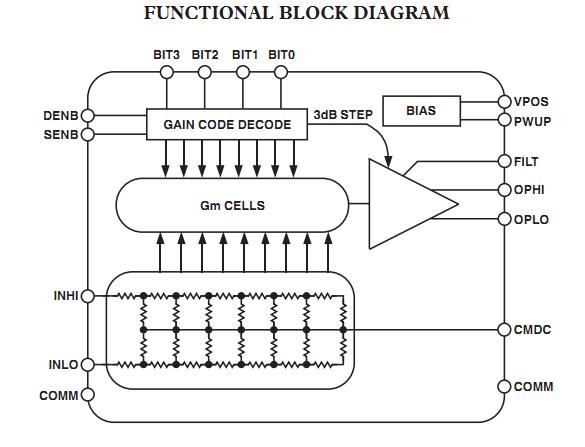

AD8369ARUZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8369ARUZ
AD8369ARUZ


IC AMP VGA 16TSSOP

Data Sheet

0-1: $5.92
1-10: $5.32
10-100: $4.38
100-250: $4.02
250-500: $3.67
500-1000: $3.19
1000-2500: $3.15
AD8369ARUZ-REEL7
AD8369ARUZ-REEL7


IC AMP VGA 16TSSOP

Data Sheet

0-1000: $3.19
